A compact XYθ motion alignment stage with a low profile! The lineup consists of an X table and a θ table as the basic configuration.

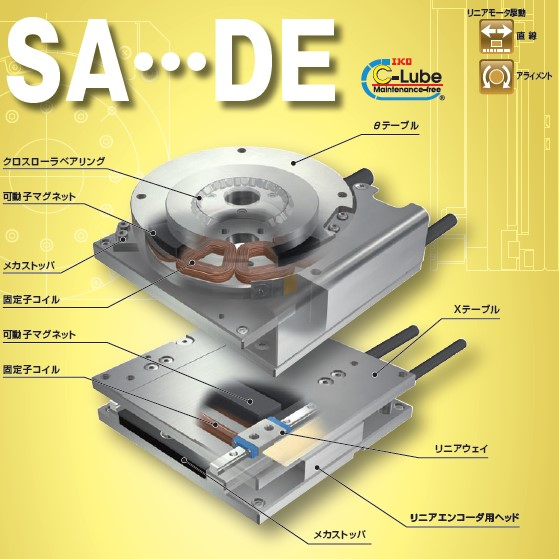

The "SA…DE" is an alignment stage that uses a linear way L in the linear motion guide and a cross roller bearing in the rotary motion guide. It employs a direct drive system for the drive unit, achieving low-profile and compact XYθ motion. By incorporating a high-resolution linear encoder and implementing full closed-loop control, it achieves high resolution and high precision. 【Features】 ■ Compact XYθ table ■ Free combination of XYθ ■ Thin and compact ■ High resolution and high response *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications and Performance (Partial)】 ■Model Number: SA65DE/1X ・Maximum Thrust N: 25 ・Rated Thrust N: 3.5 ・Effective Stroke Length mm: 10 ・Maximum Load Capacity kg: 2.4 ・Resolution μm: 0.1 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
