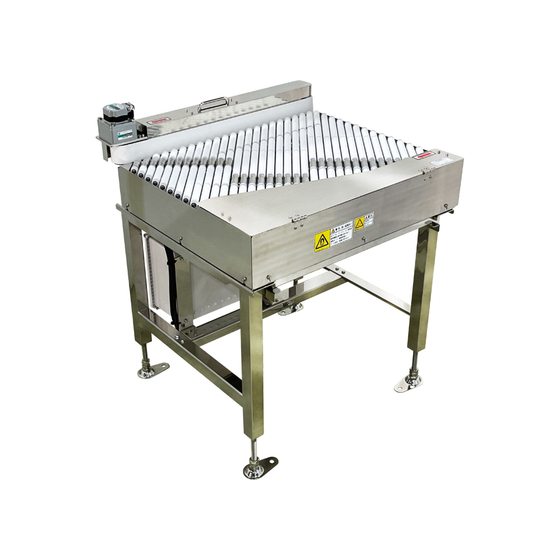

Width-adjusting aligned roller conveyor SGA-WA
Resveya Series - The pinnacle of patented non-contact driven magnetic drive.
Even when wet, merging and alignment are possible! Improved waterproofing stabilizes the transport of thin materials.
Waterproof type side alignment conveyor that aligns and gathers scattered transported items. ■Main specifications - Reference transport mass: 5 kg/unit (distributed load) - Nominal width: 300–600 mm - Length: 61–150 cm - Roller diameter/pitch: Φ20 mm・22–38.4P
Inquire About This Product
basic information
■Features - Unwavering transport capability even when wet - Quick recovery in case of trouble - Achieves space-saving with a 47% reduction from conventional models ■Other Specifications - Motor output: 40 W - Minimum height: 600 mm - Frame material: Stainless steel *For detailed product information, please visit our website. *CAD data may be updated without notice. Please check our website for the latest data.
Price range
Delivery Time
Applications/Examples of results
■About the Resveya Series <World's First. Conveyance Drive Using Magnetic Force> Resveya utilizes the principle of magnetic attraction and repulsion to rotate the conveyance rollers, making it the world's first of its kind. This achieves a highly efficient and low-loss drive compared to conventional belt systems. <Advantages of Line Configuration> The groundbreaking and clean principle of Resveya can accommodate various conveyance environments in manufacturing processes. Due to the non-contact drive powered by strong magnetic force, wear and dust generation are extremely low, resulting in low noise. "Quietly and eco-friendly conveyance." The Resveya series truly responds to customer needs as a "future-shaped conveyor." <Promotion of Carbon Neutrality> Carbon neutrality refers to efforts to reduce greenhouse gas emissions and offset any unavoidable emissions by the amount absorbed by forests and other means, effectively bringing net emissions to zero. Compared to traditional conveyors that rely on friction for drive transmission, magnetic drive allows for non-contact drive transmission, resulting in extremely low transmission loss. Under equivalent conveyance conditions, motor capacity can be reduced, leading to a difference of as much as 55% when converted to CO2 emissions.
catalog（4）
Download All Catalogs
Company information
Maruyasu Machinery is a machinery manufacturer that specializes in conveying equipment such as conveyors, as well as various automation and labor-saving machines. Through solving challenges related to "transportation," we contribute to automation, labor reduction, and energy conservation across a wide range of industries. We have adapted to any form of transportation that moves from right to left or top to bottom, handling all types of transported items including food trays, carton cases, plastic containers, and pallets. In addition to providing versatile standardized products (standard products), we have focused on offering products tailored to the individual needs of our customers. After 70 years since our founding, we will continue to dedicate ourselves to providing even more original products and services to overcome the challenging economic environment.
