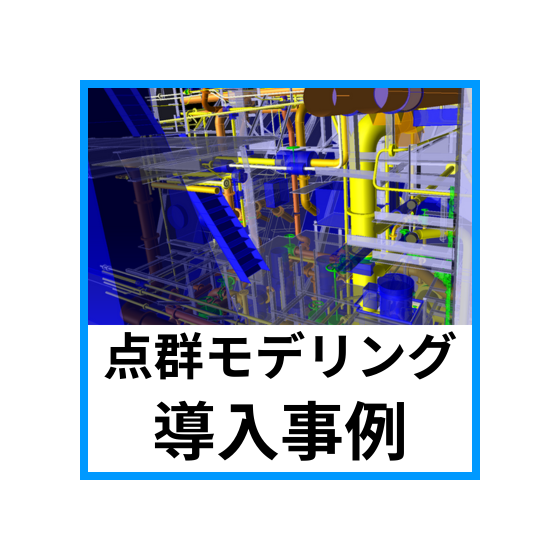

[Case Study of Large-Scale Point Cloud Modeling Software] Ballast Seven Co., Ltd.
The introduction of ClassNK-PEERLESS streamlines the retrofitting design of ships. Expansion into other industries as well!
At Ballast Seven Co., Ltd., which specializes in the design of ship modifications, they conducted designs based on point clouds measured with a 3D laser scanner to accurately grasp the differences between the actual ship and the completed drawings. However, conventional 3D CAD systems could not handle point clouds, resulting in lengthy modeling times. To address this, they introduced "ClassNK-PEERLESS," which excels in automatic modeling of piping and steel materials. By simply selecting a portion of the point cloud, they could automatically generate piping and extend it to the appropriate diameter according to standards, significantly reducing modeling labor. As a result, they completed modeling for 300 shots in less than 80 hours, achieving a short delivery time of about three months from order to completion. Curved structures such as outer plates can now be easily created, and the improvement in model accuracy has proven effective in explaining to customers. The company is also looking to leverage this technology for expansion into land-based fields in the future. [Results of Implementation] - Significant reduction in labor hours due to automatic modeling functions for piping and steel materials. - Completion of modeling for 300 shots in less than 80 hours, achieving short-term engineering within three months. - Promotion of expansion into other industries such as plants by utilizing accumulated 3D modeling technology. For more details, please refer to the PDF.
Inquire About This Product
basic information
"ClassNK-PEERLESS" creates 3D models from point clouds obtained by a 3D laser scanner with the necessary accuracy in a short time. By utilizing a database that consolidates standardized parts and rules and knowledge specialized in various fields, modeling can be easily performed without specialized knowledge. By representing areas that cannot be expressed in point clouds with 3D models, it supports the efficiency of modification and maintenance work for large structures such as shipbuilding, factories, and plants, as well as layout planning for equipment. [Features] ■ Create current 3D models ■ Consider routes for new piping ■ Create 3D models of equipment ■ Create 3D models of structures
Price information
For more details, please contact us.
Delivery Time
Applications/Examples of results
ClassNK-PEERLESS allows anyone to perform modeling in a short time with its simple operation and automatic recognition of standards. By modeling the entire space, it can be utilized for interference checks during renovation design and for confirming transportation routes. 【Specialized modeling targets】 Plants, factories, buildings, ships, bridges
catalog（3）
Download All Catalogs![[ClassNK-PEERLESS Case Study] Ballast Seven Co., Ltd.](https://image.mono.ipros.com/public/catalog/image/2064043/IPROS3605267668767077208.jpeg?w=120&h=170)
![Application to Ship Retrofit Design | Case Study on 3D Modeling Efficiency [ClassNK-PEERLESS]](https://image.mono.ipros.com/public/catalog/image/2064043/IPROS1064390557511457481.jpeg?w=120&h=170)
Company information
Since our establishment in 1984, we have consistently faced the diverse challenges encountered in the manufacturing industry. By combining our customers' extensive know-how with our strength in three-dimensional shape processing technology, we provide solutions that are truly beneficial to manufacturing sites. The pillars of our business are "contract development," which leverages our flexible responsiveness, and "packaged products," which reflect the needs of the field. In both areas, we aim to carefully understand our customers' challenges and utilize our analytical skills from a field perspective along with our solid technical capabilities to deliver valuable products and services.
