Faster and smarter motor design! Python-native motor design solution.

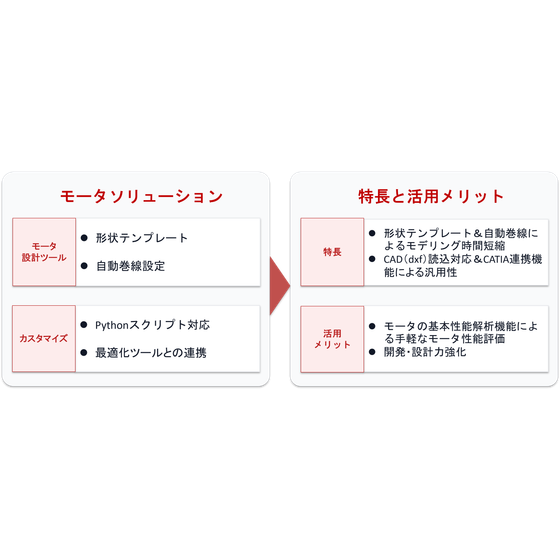

In motor design, the complexity of initial setup and the limited number of trials become a bottleneck for productivity. eMotorSolution completes modeling in just a few minutes with its shape template and winding setting features. The built-in high-speed 2D analysis (EMSolution Lite) allows for rapid iteration of parameter studies. Results are immediately visualized as magnetic flux lines, contours, vectors, and waveforms, and can be smoothly integrated into existing design flows through dxf/CATIA compatibility and Python support.
Inquire About This Product
basic information
【Features】 ○ Templates for various motor types (inner rotor/outer rotor PMSM, Syn. RM) are provided, allowing the creation of motor shapes by selecting the slot type. ○ Coil connections are automatically set based on the number of phases and slots. ● Supports multi-pole multi-slot outer rotor SPMSM. ● Supports wiring for dual three-phase motors as 6-phase motors. ○ The characteristics of available materials can be registered (material database implementation planned). ○ Supports various mesh creation methods (using Gmsh*2). ○ Display of calculation results in contour and magnetic flux line formats. ○ Graph display of torque waveforms and induced voltage waveforms (in JSON format). ○ Graph display of basic motor characteristics (Ld, Lq inductance, N-T curve, T-I curve, etc.). ○ Creation of behavior model data and efficiency map generation. ● For more details, please contact us. 【Contact Information】 ● E-mail: em_solution@ssil.co.jp
Price range
Delivery Time
Applications/Examples of results
SPM (Surface Permanent Magnet Synchronous Motor), IPM (Interior Permanent Magnet Synchronous Motor), SynRM Motor (Synchronous Reluctance Motor), etc. Quick evaluation of the basic characteristics of motors Reduction of analysis evaluation time Display of contour and magnetic flux lines Graphical display of torque waveforms and induced voltage waveforms Graphical display of basic motor characteristics (Ld, Lq inductance, N-T curve, T-I curve, etc.)
catalog（9）
Download All Catalogs
Company information
Electromagnetic field analysis technology has become essential not only for understanding real phenomena during the design stage of electromagnetic devices but also for the initial stages of conceptual and basic design. Science Solutions Co., Ltd. provides thorough support from development to analysis to solve electromagnetic field analysis issues.
