Further high precision and efficiency in quality inspection of semiconductors, EVs, and secondary batteries.

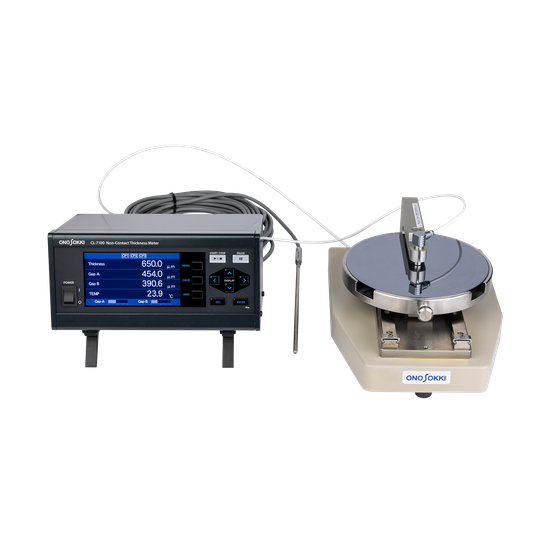

As a successor to the long-selling product "CL-5610 series," this new model significantly enhances measurement accuracy and response performance, and includes new features such as temperature measurement and Ethernet communication. It strongly supports the efficiency of inspection processes and quality improvement. This product accommodates thickness measurement of various materials, including silicon wafers, electromagnetic steel sheets for motors, and films for EV batteries. By combining with a variety of displacement sensors, it evolves quality control on production lines to achieve high precision and speed.
Inquire About This Product
basic information
- High precision and high response ─ Measurement accuracy ±0.05 to 0.12 %FS (depending on sensor combination), calculation cycle 10 ms - New features added ─ Temperature measurement and correction function, Ethernet communication (optional) - Improved operability ─ Easy-to-read and user-friendly touch panel display
Price range
Delivery Time
Applications/Examples of results
- Thickness measurement of conductors and semiconductors Example: Silicon wafers, electromagnetic steel sheets for motors - Thickness measurement of insulators (when equipped with option CL-0740) Example: Insulating films for lithium-ion batteries and fuel cells
catalog（3）
Download All Catalogs
News about this product（2）
Company information
Our technology supports solutions in various fields. With technologies in sensing, measurement, control, data processing, and precision mechanisms, along with a total technology that integrates them, we are able to provide various solutions that meet the needs of production sites. Moving forward, we will continue to leverage our diverse technological capabilities to challenge the development of high-value-added products and systems that attract attention across different industries and sectors.
