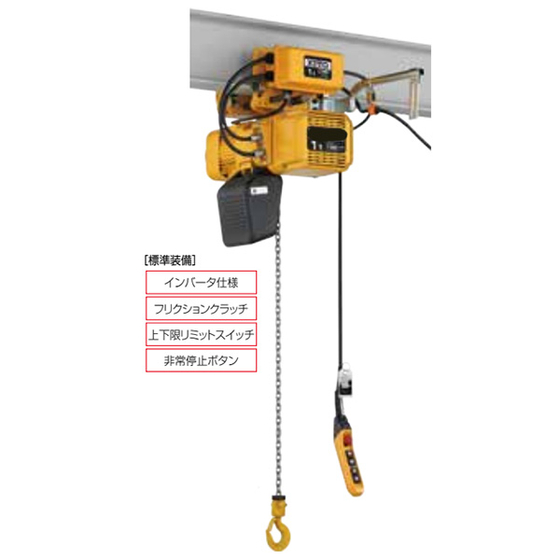

Electric trolley coupling type, vertical and horizontal two-speed inverter type
● The power supply cable is not included. Please consult us according to the power supply method. ● The length of the lift (load chain) and push button cord can be customized beyond the standard specifications upon request.
Inquire About This Product
basic information
■Specifications Model Number Rated Load (t) Basic Body Standard Lifting Height (m) Hoisting Motor 3-phase 200V Traversing Motor 3-phase 200V Output (KW) Current Value (A) Duty Cycle (%ED) Output (KW) Current Value (A) Duty Cycle (%ED) INV INV M75R2-M001IH-IS-4M 125kg B 4 0.56 4.0 40/20 0.4 3.0 27/13 M75R2-M001IH-IS-6M 6 M75R2-M003IS-IS-4M 250kg 4 M75R2-M003IS-IS-6M 6 M75R2-M003IH-IS-4M C 4 0.9 5.7 M75R2-M003IH-IS-6M 6 M75R2-M004IL-IS-4M 490kg 4 0.56 4.0 M75R2-M004IL-IS-6M 6 M75R2-M004IS-IS-4M 4 0.9 5.7 M75R2-M004IS-IS-6M 6 M75R2-M005IS-IS-4M 500kg 4 M75R2-M005IS-IS-6M 6
Price range
Delivery Time
Applications/Examples of results
● Please note that the load chain cannot be spliced as it is a hardened chain. ● The operation method includes a 5-button (up, down, lateral) system for Telha and a 7-button (up, down, lateral, travel) system for cranes. ● The operating circuit is at a low voltage of 24V, so if you are using the 7-button system for cranes, please purchase a separate control box for cranes. ● The push-button switch is equipped with an emergency stop button as standard. By pressing the emergency stop button, you can cut off the motor circuit at your location. ● If multiple units are used on the same rail and there is a possibility of collision, a buffer bumper is required. ● For dual hoisting operations, it is necessary to select a hoist with a rated load that has some margin, so please consult the manufacturer in advance. ● The lifting speed is the speed when lifting the rated load. It may vary depending on the load. ● For heights other than the standard lifting height, we accept requests from 5 to 20 meters in 1-meter increments. (For 2.8 to 5 tons, up to 10 meters; for 7.5 to 20 tons, up to 6.0 meters.) For other cases, please contact us separately.
