It demonstrates excellent performance in places with space constraints and in environments where quietness is required!

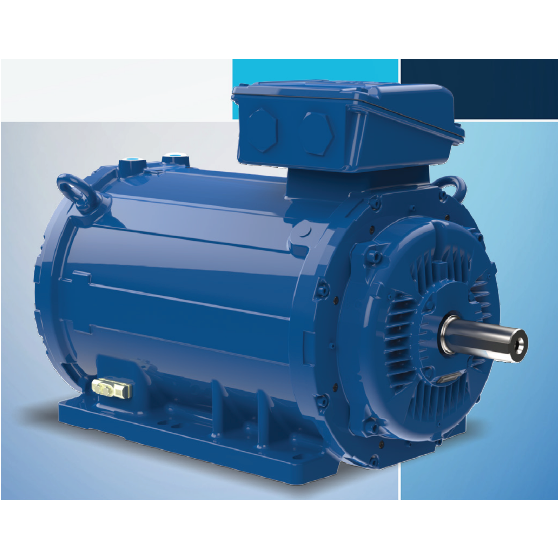

The "W22 Water Cooled Series" is designed to be used safely even in harsh environments thanks to its water cooling system. By minimizing heat dissipation to the external environment, it ensures high safety and reliability even at high output. Additionally, it achieves quiet and stable operation even at low speeds. Furthermore, the robust cast iron frame, high corrosion resistance of the C4 coating, and compact body design enable high efficiency and flexible operation. 【Technical Specifications (Partial)】 ■ Output: Up to 450kW ■ Number of Poles: 2 to 6 poles ■ Frame Size: 200, 250, 315 ■ Rated Voltage: Up to 690V ■ Frequency: 50Hz or 60Hz ■ Service Factor: 1.00 *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
Related Videos
basic information
【Other Technical Specifications】 ■Protection Class: IP55 ■Insulation Class: F or H ■Mounting Method: B3T ■Frame Material: Cast Iron ■Cooling Method: IC71W ■Ground Terminal: Equipped on the frame and main terminal box *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Examples of Introduction】 ■Tunnel Boring Machine ■Injection Molding Machine ■Water Treatment Plant ■Textile Industry ■Mining Equipment *For more details, please download the PDF or feel free to contact us.
catalog（2）
Download All Catalogs
News about this product（2）
Company information
WEG is known as one of the world's leading manufacturers of commercial and industrial motors, gearboxes, automation technology, control and protection systems, power generation equipment, and industrial coatings and paints. Our company was established in 1994 as the Japan branch of the WEG Group. We have continued to provide cutting-edge products and after-sales service to our customers in Japan, and we celebrated our 25th anniversary in May 2019. Moving forward, we will leverage our global network, which includes production bases in 12 countries across four continents and operations in 120 countries, to provide optimal solutions to our customers.
