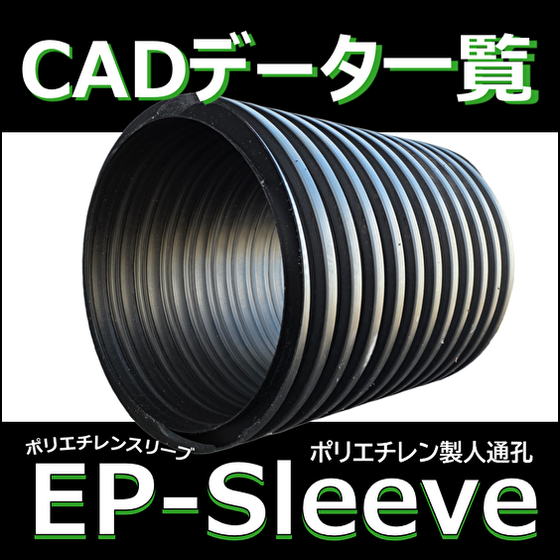

You can download CAD data for the polyethylene sleeve / human passage (human access) EP-Sleeve (EP sleeve).
When using the CAD data download, please check the following notes in advance. From the moment you use the provided data, you are considered to have agreed to the following notes. Thank you for your understanding. <Notes> ◆ The CAD data should only be used for the purpose of considering the adoption of our products, and should not be used for any other purpose. ◆ The copyright and ownership of the CAD data are owned by EPJ Corporation, and you may not reuse (repurpose) the data in digital or print media without the consent of EPJ Corporation. Furthermore, please refrain from lending or transferring it to third parties. ◆ Please refrain from modifying or processing the CAD data without permission. ◆ Please be aware that we cannot be held responsible for any results arising from the use of the CAD data. ◆ The published data may be updated or deleted without notice due to product improvements or version upgrades. Thank you for your understanding. *For more details, please feel free to request the data via email or download it from the "EPJ Corporation" special site on Ipros through the related link.
Inquire About This Product
basic information
Contact: EPJ Corporation TEL: 03-5643-8137 FAX: 03-5643-8138 Email: info@epj-inc.co.jp EP-Sleeve (EP Sleeve) [Underground Beam: Passage Hole Use] <Specifications> (This product is based on nominal inner diameter) - EP-600 Inner Diameter: 600 / Outer Diameter: 700 (mm) Reference Weight: Approximately 17kg/m * EP-700 Inner Diameter: 700 / Outer Diameter: 816 (mm) Reference Weight: Approximately 23kg/m * EP-800 Inner Diameter: 800 / Outer Diameter: 938 (mm) Reference Weight: Approximately 29kg/m [Manufacturing Length: Minimum 300 to Maximum 1900 mm] Note 1) The allowable tolerance for the inner diameter of the pipe is ±1.5%. Note 2) The cutting tolerance for the pipe is Manufacturing Length -5mm to 0mm. Note 3) * Sizes are not part of the regular stock. Please confirm the manufacturing lead time in advance.
Applications/Examples of results
For more details, please feel free to request the data via email or download it from the "EPJ Corporation" special site on Iprosu through the related link.
Line up（3）
| Model number | overview |
|---|---|
| EP-600 Nominal Diameter (Inner Diameter) | Outer diameter: 700mm |
| ※EP-700 Nominal Diameter (Inner Diameter) | Outer diameter: 816mm (not a regular stock item) |
| ※EP-800 Nominal Diameter (Inner Diameter) | Outer diameter: 938mm (not available as regular stock) |
