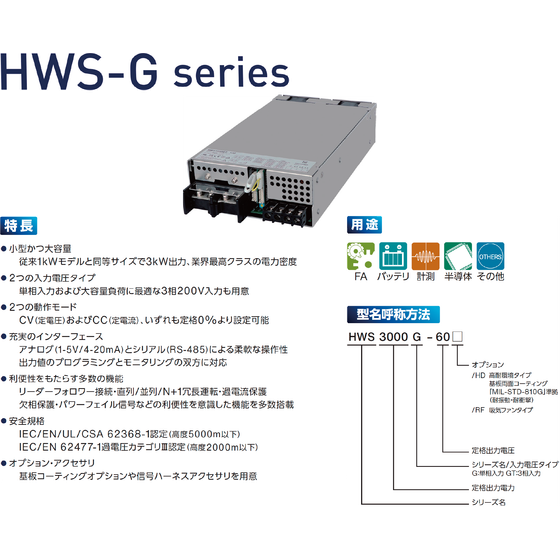

TDK Lambda Compact High-Capacity Next-Generation Unit Type AC-DC Power Supply
● Compact yet high capacity 3kW output with the same size as the conventional 1kW model, featuring industry-leading power density ● Two input voltage types Single-phase input and a three-phase 200V input ideal for high-capacity loads are also available ● Two operating modes CV (constant voltage) and CC (constant current), both can be set from 0% of the rated value ● Comprehensive interface Flexible operability with analog (1-5V/4-20mA) and serial (RS-485) options Supports both programming and monitoring of output values ● Numerous convenience features Includes features designed for convenience such as leader-follower connection, series/parallel/N+1 redundant operation, overcurrent protection, phase loss protection, and power fail signals ● Safety standards IEC/EN/UL/CSA 62368-1 certified (below altitude 5000m) IEC/EN 62477-1 overvoltage category 3 certified (below altitude 2000m) ● Options and accessories Available with board coating options and signal harness accessories *For more details, please refer to the PDF document or feel free to contact us.*
Inquire About This Product
basic information
For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Meiko Electronics is a comprehensive trading company for semiconductors and electronic components. We pick up the necessary semiconductors and electronic components for industrial machinery manufacturers' product development from a global network of component manufacturers, and we propose products that satisfy all criteria including delivery time, performance, and price. If you have any concerns regarding product development, please feel free to consult us.
