Ultra-fine tungsten core diamond wire (for semiconductor production)
D２５ Ｄ３０ Ｄ３５ Ｄ４０
Ultra-fine tungsten core diamond wire is a material for next-generation semiconductor production.
(Product Introduction) ●Full Name: Ultra-Fine Tungsten Core Diamond Wire ●Category: Cutting Tool ●Application: Diamond Multi-Wire Saw ●Compatibility: Multi-slicing processing of hard and brittle materials such as silicon, sapphire, magnetic neodymium iron, SiC, GaN, etc. ●Features: Compared to the current high-carbon steel core wire (standard: 35μm is the limit), tungsten (standard: 25μm and above) allows for high-tension, fine-diameter multi-slicing cutting, and the cutting surface is a beautiful mirror finish. (Product Specifications) ●Standards: Tungsten Diameter: 25, 30, 35, 40μm ●Model Numbers: D25, D30, D35, D40 ●Packaging: Standard length of 100km roll (can be rolled in lengths of 1km to 200km according to the user's reel shape) ●Weight of 100km roll: D25: 15kg, D30: 20kg, D35: 25kg, D40: 30kg (net weight of W: weight may vary due to Ni plating layer and D electrode layer) ◎Description: Core wire diameter: The wire diameter of high-carbon steel wire saw is about 35μm, which is the limit, but the wire diameter of W wire saw can be thinner with a low breakage rate, so W25 is also usable.
Inquire About This Product
basic information
Physical properties of W) Abbreviations: D = Diamond, W = Tungsten, Re = Rhenium, Ni = Nickel, (S) = Sample available - Specific gravity Sp: 19.3 g/cm³ (almost the same as gold) - Melting point: 3380°C (the highest among metals) - Mohs hardness: 7.5 - Boiling point: 5555°C - Thermal conductivity: 160 W/m·K (at 300 K) ● Strength) Tensile fracture strength: - D25: 3N approximately 300 gf - D30: 4N approximately 400 gf - D35: 5N approximately 500 gf - D40: 7N approximately 700 gf ◎ Comparison of physical properties with high carbon steel core wire) - Electrical resistivity: about half that of carbon steel - Fracture strength: over 1.2 times - Torsional rigidity: over 10 times - Young's modulus: 1.7 times - Elongation ratio: about 60% Chemical properties of W and D) ◎ W material: Tungsten W 99.4% + Rhenium Re 0.6% Alloy symbol: WRe 0.6 ● Reaction with O2: Oxidation begins or graphitization occurs for both W and D at 400 to 700°C (oxidation prevention and cooling measures are necessary) ○ Hazardous materials: No ○ Toxicity: None ○ D line quality standard: ASTM not yet available
Price information
(Price for a roll of 100 km length) - W25: 350,000 yen - W30: 390,000 yen - W35: 430,000 yen - W40: 500,000 yen Includes shipping and tax; customs duties are separate; terms are negotiable.
Price range
P3
Delivery Time
P4
Applications/Examples of results
Diamond Multi-Wire Saw ◎ Explanation of Electrical Resistivity: The diamond wire saw → fixes diamond powder around the core wire using electroplating or coating → the electrical resistivity of tungsten is about half that of carbon steel → the current capacity is about twice as much → from the diamond powder dispersed plating solution → a thick (diamond-holding nickel) electroplated layer can be formed on the outer diameter surface. ◎ Process of Fixing Diamond Powder: The Ni layer on the outer circumference of the tungsten wire is ferromagnetic, so → it is immersed in a type of flowing dispersion of diamond powder in nickel plating solution → forming a diamond powder electroplating + Ni plating layer → followed by a heat-fixing treatment. ◎ Measures for Oxidation Prevention and Cooling: - Oxidation Prevention: PSA Molecular Sieve Nitrogen Gas Generator (S) - Air Cooling: Spin Chamber Cold/Hot Separation Compressed Air Pipe (S) - Water Cooling: Peltier Element Cold/Hot Separation Semiconductor (S) Cautions for Use: Tungsten ultra-fine wire has a mysterious property that allows it to easily curl just by rubbing it with fingers → curling can cause kinks → while curling can be visually corrected by lightly heating with a flame, the strength of the corrected area will definitely decrease → therefore, curls that form at the ends should be cut off → care should be taken not to form curls in the middle section → if you need to bend the wire path, always use a wire path roller to avoid resistance.
Detailed information
-

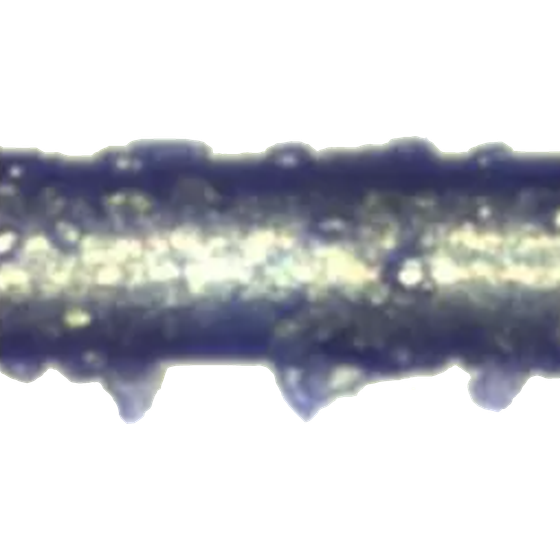

Diamond wire structure
-
Diamond wire saw operating principle
-
Multi-wire slicing of silicon ingots using a diamond multi-wire saw.
-
Slurry cutting and wire saw cutting
-
Diamond Wire Saw Image Analysis Device
-
100km roll of wire
Line up（4）
| Model number | overview |
|---|---|
| Ｄ２５ | Weight of 100 km roll: D25: 15 kg (This is the net weight: Weight may vary due to the Ni plating layer and D electrodeposition layer) |
| Ｄ３０ | Weight of 100 km roll: ・D30: 20 kg (This is the net weight: the weight may vary due to the Ni plating layer and D electrodeposition layer) |
| Ｄ３５ | Weight of 100 km roll: ・D35: 25 kg (This is the net weight: the weight may vary due to the Ni plating layer and D electrodeposition layer) |
| Ｄ４０ | Weight of 100 km roll length: ・W40: 30 kg (This is the net weight of W: weight may vary due to the Ni plating layer and D electrodeposition layer) |
