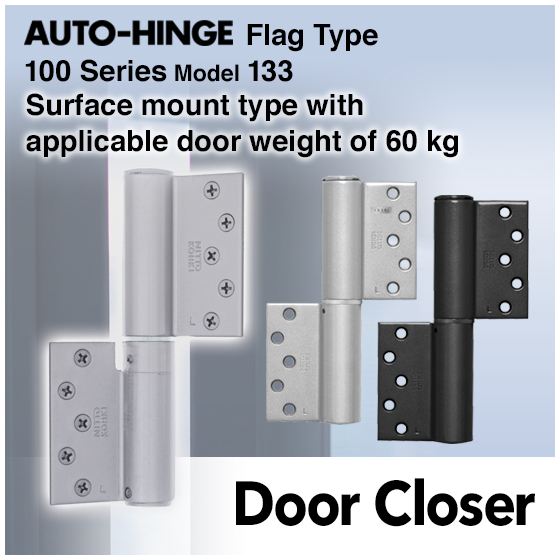

Surface mount type with applicable door weight of 60 kg!
The AUTO-HINGE Flag Type is a hinge with a built-in door closing function. Its clean and simple design complements various types of doors, enhancing both appearance and performance. Previously, the surface mount type was limited to doors up to 40 kg. A new model supporting heavyweight doors up to 60 kg has now been added to the lineup. 【Features】 ・For indoor use and heavyweight doors ・Surface mount type for easy installation ・Available in silver and black surface finish 【Standard Accessories】 ・Countersunk head screws for sash M6 x 16L: 20 pcs ・Set pin: 1 pc (Model 133) ・Spring pin: 1 pc (Model 133S)
Inquire About This Product
Related Videos
basic information
【Specifications】 ● Common to all models Applicable door size (mm): DW 900(Max), DH 2100(Max), DT 30 (Min) Applicable door weight (kg): 60(Max) Max. door opening angle: 180° left or right one-side opening ● 133R, 133L Stop mechanism: Not available Stop angle: Not available Surface color: Silver ● 133SR, 133SL Stop mechanism: Available Stop angle: 85° and 150° Surface color: Silver ● 133R‑V, 133L‑V Stop mechanism: Not available Stop angle: Not available Surface color: Black ● 133SR‑V, 133SL‑V Stop mechanism: Available Stop angle: 85° and 150° Surface color: Black
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF or feel free to contact us.
