Innovative powder manufacturing realized by MMSD (Micro Mist Spray Dryer)
●What is a spray dryer? A spray dryer is a device that converts liquid raw materials into fine powder. Specifically, it uses a nozzle to turn liquid raw materials such as solutions or suspensions into a fine mist. This mist is then brought into contact with a high-temperature gas (usually air), causing the liquid components, such as moisture, to evaporate instantly, resulting in dried fine powder. ●Why can it dry? When the liquid becomes a fine mist, the surface area increases dramatically. This increases the contact area with the high-temperature gas, allowing heat to be transferred efficiently, which causes moisture to evaporate instantly. Additionally, because the drying time is very short, even heat-sensitive materials can be dried at relatively low temperatures.
Inquire About This Product
basic information

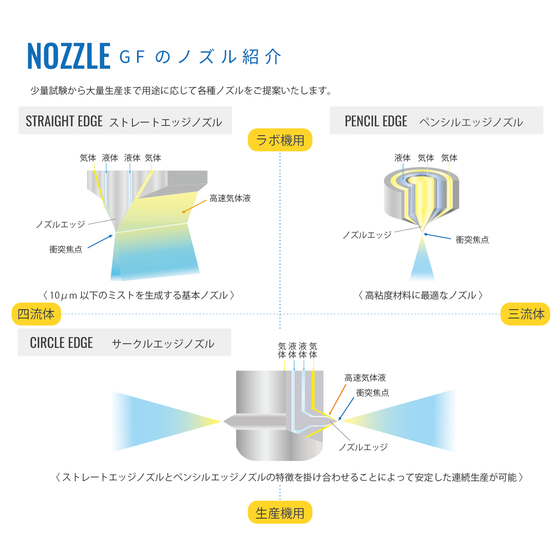

Features of MMSD (Micro Mist Spray Dryer) ◎ Generates particles smaller than 10µm MMSD is a GF original spray dryer that can produce particles smaller than 10µm. ◎ Diverse nozzles Depending on the application, optimal nozzles can be selected, including four-fluid straight edge nozzles, pencil edge nozzles, and four-fluid circle edge nozzles. ◎ Wide range of applications - Capable of handling everything from small-scale testing to mass production. - Usable in various fields such as lithium-ion battery materials, pharmaceuticals, and food. - Models compatible with organic solvents are also available. ◎ Customized equipment design for customers Customization is possible according to the desired production capacity and installation space of the customer. ◇◇◇ Reasons to choose MMSD ◇◇◇ Uniform particle size powders can be obtained. Materials sensitive to heat can be dried efficiently. Contributes to improved development speed and smooth scaling up to mass production. Please feel free to contact us for more information.
Price range
Delivery Time
Applications/Examples of results
- Development of lithium-ion battery materials It can efficiently produce powders with uniform particle sizes, contributing to improved battery performance. Prototyping in small quantities is possible, which enhances the development speed. - Development of pharmaceuticals It can dry heat-sensitive components at low temperatures, preserving the quality of pharmaceuticals. Micronization improves the absorption rate of the medication. - Development of food products It can powder food without compromising flavor or nutrition. Powdering enhances preservation and processability. (Formerly: Fujisaki Electric Co., Ltd.)
catalog（1）
Download All Catalogs
News about this product（1）
Company information
GF Co., Ltd. manufactures and sells Micro Mist Spray Dryers (MMSD) specialized in producing fine particles of 10 µm or smaller. Leveraging our proprietary technology with excellent particle size control, we support a wide range of applications, including electrode materials, electronic materials, pharmaceuticals, and cosmetics. We also offer spray drying trials prior to equipment installation, as well as contract processing and commissioned testing at laboratory scale. Please feel free to contact us for more information. Main Spray Drying Applications -Electrode materials (cathode and anode materials) -Electronic materials -Resin materials -Pharmaceuticals -Cosmetics
