Accelerating new material development in ultra-low oxygen environments.

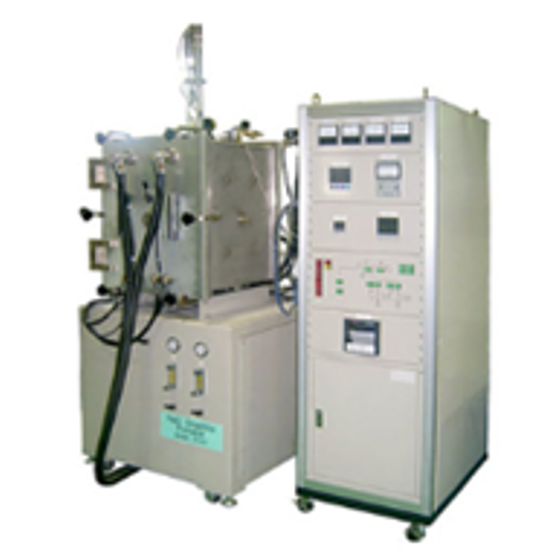

In research institutions engaged in new material development, precise temperature management and atmosphere control are required to maximize the properties of materials. Particularly in processes such as high-temperature phase transitions, crystallization, and sintering, oxygen concentration significantly affects the quality of the materials. Processing under inappropriate conditions may lead to undesired properties or degradation of the materials. Our carbon furnace achieves "ultra-low oxygen × 3000℃ class × vacuum replacement," enabling highly reproducible high-temperature treatments. 【Application Scenarios】 - Fundamental research on new materials - Evaluation of material properties - Small-batch production of diverse varieties 【Benefits of Implementation】 - Production of high-quality materials - Reduction of research and development time - Adaptability to a variety of materials
Inquire About This Product
basic information
**Features** - Achievement of ultra-low oxygen partial pressure: Gradual reduction of oxygen potential through vacuum pumping followed by Ar/N2 replacement (with diluted H2 as needed), and absorption of residual O2 by getter materials in the furnace. - High-temperature stability at around 3000°C: Usable up to 2800°C / maximum up to 3000°C, with precise control through gradual heating and holding. - Parallel evaluation of multiple samples: High flexibility in tray arrangement with rectangular trays/multi-layer shelves, enabling rapid parallel testing under the same conditions. - Seamless process from pretreatment to final firing: Continuous sequencing of vacuum, replacement, and heating to suppress recontamination/reoxidation. **Our Strengths** We integrate three technologies: "electricity," "equipment," and "chemistry" to develop innovative heating furnaces. We are a strategic development partner that supports manufacturing with innovative heating in collaboration with our customers.
Price information
*The price may vary depending on the device specifications, so please feel free to contact us for more details.
Delivery Time
※*Please feel free to contact us for more details, as the delivery date may vary depending on the equipment specifications.
Applications/Examples of results
【Regarding such issues】 ■ The presence of trace amounts of O2 leads to oxidation and decarburization at high temperatures, resulting in unstable phase purity and grain boundary characteristics. ■ It is difficult to achieve consistent temperature application/reproduction, and results vary due to size and fixture differences. ■ Recontamination and reoxidation occur because the pre-treatment and main firing are done in separate furnaces. ■ The processing capacity in tube furnaces is low. *For more detailed information, please download the materials or feel free to contact us.
catalog（3）
Download All Catalogs
![[Data] Carbon Furnace](https://image.mono.ipros.com/public/catalog/image/2116976/IPROS5391111726843584836.jpeg?w=120&h=170)
Company information
Our company integrates three technologies: "electricity," "equipment," and "chemistry," using our unique know-how to develop innovative heating furnaces and other equipment. We handle various electric furnaces (heating furnaces) such as carbon furnaces, multi-atmosphere furnaces, metal furnaces, and chlorine furnaces, leveraging our proprietary high-temperature electric furnace technology. We are not just an equipment manufacturer; we are a strategic development partner that supports innovative manufacturing with advanced heating, looking ahead to the standards of the next decade alongside our customers.
