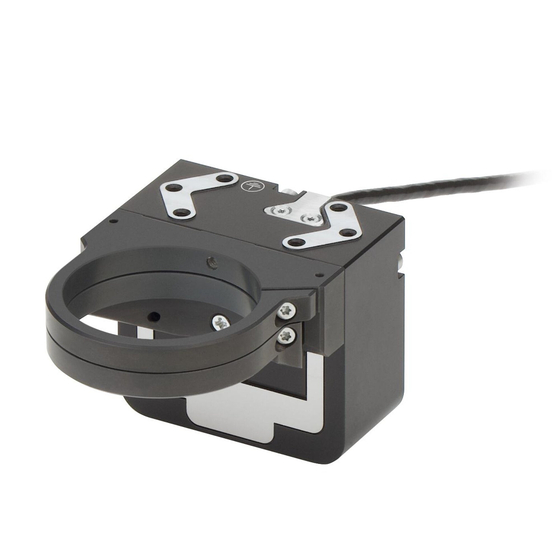

Long Stroke Objective Focus for Optical Measurement P-725.xCDE2

Sub-nanometer resolution, compatible with maximum 800 µm stroke, high-speed and high-precision PIFOC focus scanner.

In the field of optical measurement, the focus accuracy and stability of the detection position are directly linked to the precision of the results in optical imaging and precise measurement. Applications that require evaluation of fine structures or high-speed data acquisition demand high-resolution focus control and responsive operational performance. The P-725.xCDE2 PIFOC focus scanner achieves sub-nanometer resolution position control with a maximum stroke of 800 µm. Equipped with PICMA piezo actuators and high-precision capacitive sensors in a flexure guide mechanism, it provides high linearity and reproducibility in Z-direction focus adjustment for optical measurement devices. This helps to minimize the impact of focus position shifts in optical measurements, contributing to improved measurement accuracy and device yield. 【Use Cases】 - High-precision measurements with confocal microscopy - High-speed Z-scanning in multiphoton microscopy - High-resolution imaging evaluation devices - Optical interferometers and phase measurement devices 【Benefits of Implementation】 - Sub-nanometer resolution focus control - Wide measurement range with a maximum stroke of 800 µm - Reduced inspection and measurement time due to high-speed response - Long-term stability through PIFOC/flexure structure
