High-precision Z stage for nano positioning with 0.1nm resolution

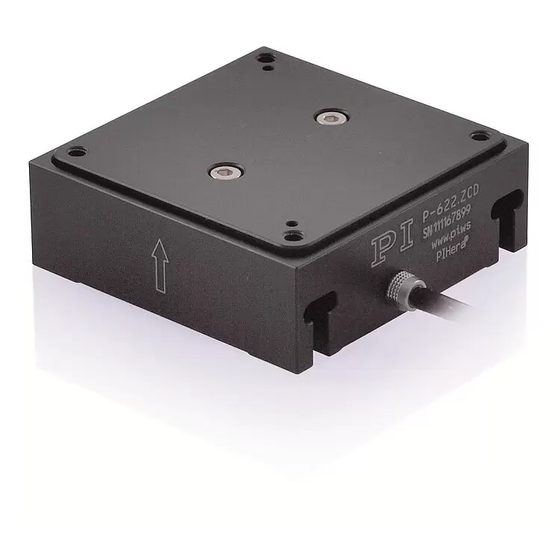

P-620.Z - P-622.Z PIHera High Precision Z Stage
0.1 nm resolution and 0.02% linearity. Improved manufacturing and measurement accuracy with sub-nanometer Z-axis control.
In the nanotechnology manufacturing industry, sub-nanometer positioning accuracy is essential for microfabrication and precision measurement. Particularly in semiconductor manufacturing and the production processes of MEMS devices, even slight positional shifts can significantly impact product quality. The P-620.Z to P-622.Z models achieve high reliability and long lifespan through a combination of a frictionless flexure guide system and PICMA piezo actuators, contributing to the stabilization of manufacturing processes. [Application Scenarios] - Wafer inspection in semiconductor manufacturing - Microfabrication in MEMS device manufacturing - Precision measurements such as interferometers and confocal microscopes [Benefits of Implementation] - Improved yield in manufacturing processes - Enhanced product quality - Increased measurement accuracy You can check the detailed product specifications in the catalog. If you have any questions, please feel free to contact us.
Inquire About This Product
basic information
【Features】 - 0.1 nm resolution - 0.02% positioning accuracy - Frictionless precision flexure guide system - Long lifespan with PICMA(TM) piezo actuators - Vacuum-compatible version available 【Our Strengths】 Based on precision control technology developed over more than 50 years at our headquarters in Germany, we provide piezo stages and actuators adopted by research institutions and equipment manufacturers worldwide. With a rich lineup and technical expertise, we offer optimal solutions tailored to our customers' needs.
Price information
Please feel free to contact us.
Delivery Time
※Please feel free to contact us.
Applications/Examples of results
Application examples - Interferometer - Microscopic examination - Nano positioning - Biotechnology - Quality assurance testing - Semiconductor technology
