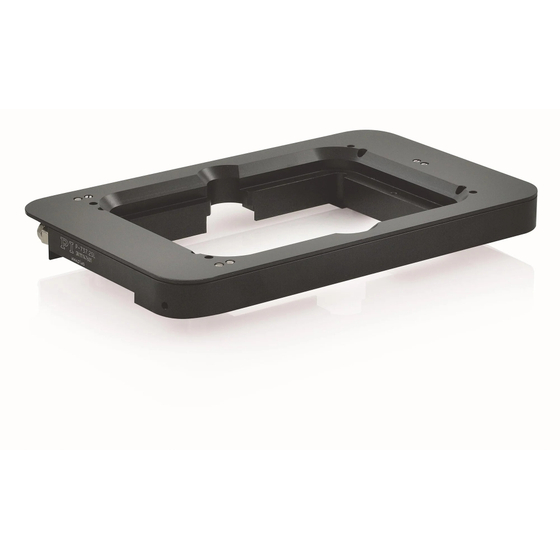

High-speed, high-resolution piezo Z-focusing stage supporting live cell observation.
In the fields of life sciences and biotechnology, stable focusing during microscopic observation greatly affects the reproducibility of acquired data and the accuracy of analysis. Particularly in live cell imaging and 3D observation, high-speed and high-resolution Z-axis control is required. The P-737 PIFOC Z stage employs a piezo-flexure mechanism that directly drives the objective lens, achieving high-speed Z positioning with nanometer resolution. Depending on the model, it can secure sufficient stroke length, making it suitable for Z-stack acquisition and long-duration observations. Its compact design also allows for easy integration into existing microscope systems. 【Usage Scenarios】 - Live cell imaging - 3D observation using confocal microscopy - Cell culture and tissue observation 【Benefits of Implementation】 - Reduced measurement time through high-speed Z scanning - Precise focusing with nanometer resolution - Highly reproducible imaging - Easy integration into microscope systems
Inquire About This Product
basic information
【Features】 - High-speed piezo operation in the vertical direction: Stroke up to 250μm (customizable up to 500μm) - Nanometer resolution - Accommodates specimen holding with a large central opening - Mechanically compatible with manual or motor-driven XY OEM stages - Response time in the millisecond range 【Our Strengths】 Based on precision control technology cultivated over more than 50 years at our headquarters in Germany, we provide piezo stages and actuators adopted by research institutions and equipment manufacturers worldwide. With a rich lineup and technical expertise, we propose optimal solutions tailored to our customers' needs.
Price information
Please feel free to contact us.
Delivery Time
※Please feel free to contact us.
Applications/Examples of results
Application examples - Fluorescence microscope - Confocal microscope - Biotechnology - Autofocus system - 3D imaging - Medical technology
