For positioning the Z-axis in microscopy, optical experiments, and precision measurements. A precision Z-stage featuring a high-rigidity cross roller guide.

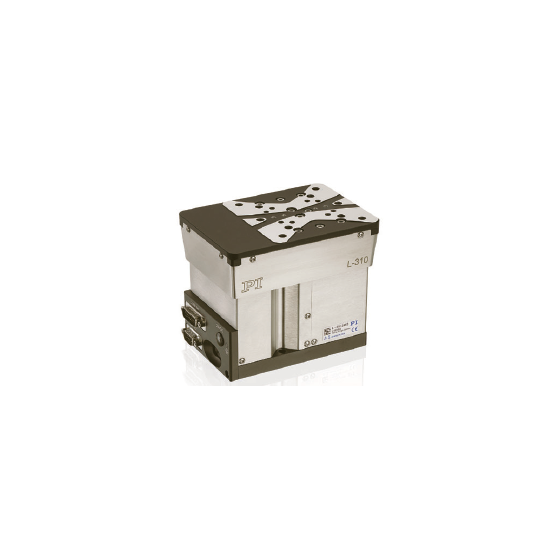

In experimental research and development, positioning accuracy at the nano to micron level affects the reliability and reproducibility of experimental results. Particularly in fields such as microscopic observation, optical experiments, and material evaluation, stable precision positioning in the Z direction is essential. The L-310 is a high-precision Z stage that employs ball screw drive and cross roller guides. In addition to high guide precision and rigidity, it achieves stable Z-axis position control for research and development applications through high-precision position measurement using an incremental encoder. 【Application Scenes】 - Microscopic observation devices - Precision measurement devices - Material testing devices - Optical experiment devices - Experimental devices for research and development 【Benefits of Implementation】 - Improved experimental accuracy through high-precision Z-axis positioning - Enhanced reproducibility of experimental data due to stable operation - Easier fine adjustments due to smooth operation - High reliability for research applications You can check the detailed product specifications in the catalog. If you have any questions, please feel free to contact us.
Inquire About This Product
basic information
【Features】 - Achieves high guide precision and rigidity - Uses stress-relieving aluminum base - Ensures smooth operation and low friction for long lifespan - High-precision position measurement with incremental encoders - Small incremental motion and low-speed motion 【Our Strengths】 Based on over 50 years of experience at our headquarters in Germany and 30 years of experience in our Japanese subsidiary, we provide piezo stages and actuators adopted by research institutions and equipment manufacturers worldwide, leveraging our precision control technology. With a rich lineup and technical expertise, we propose optimal solutions to meet our customers' needs.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■Industrial ■Precision positioning in research fields ■High duty cycle *For more details, please download the catalog or feel free to contact us.
