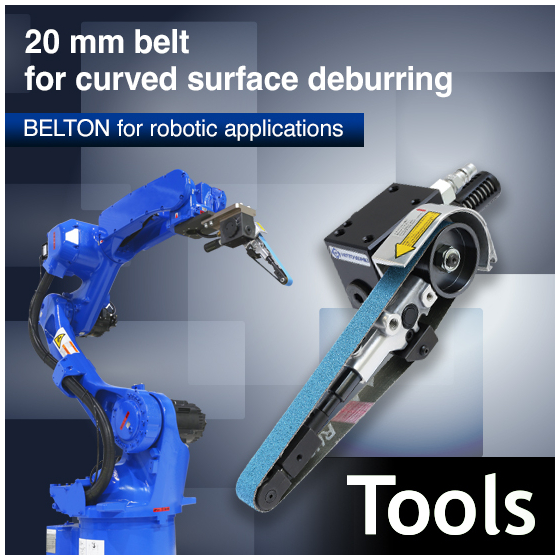

Model equipped with a 20mm wide belt suitable for automating deburring of curved sections.
In the deburring of complex-shaped workpieces such as metal parts and aluminum die-cast products, the ability to follow curved surfaces and the stability of the processing significantly affect the quality of the finish and work efficiency. Nitto Kohki's belt sander B-20CL-01 for automatic machines is a 20mm wide belt sander compatible with automatic machines, particularly excelling in processing curved and R-shaped surfaces. [Examples of Use] - Deburring of aluminum castings and die-cast parts - Grinding of parts with many curves and R shapes - Automation of the deburring process using robots
Inquire About This Product
Related Videos
basic information
【Features】 ● The 20mm wide belt is highly effective for contour edge finishing. We have adopted a 20mm wide belt, which is wider than the typical 10mm width and easier to handle than the 30mm width. ● Offset bracket allows for R-surface grinding. The offset bracket enables R-surface grinding by utilizing the "deflection" of the belt. It can reproduce smooth curved finishes that are difficult to achieve manually on automated lines. ● Secure fixation to robots is possible. The main body is equipped with screw holes and positioning pin holes, allowing for secure and highly reproducible attachment to industrial robots and dedicated jigs. This leads to improved reproducibility in teaching and reduced time for replacement tasks. ● Compatible with air float attachments for stable processing. It is compatible with air float attachments made by FINESYSTEM Co., Ltd. This achieves stable grinding with a consistent pressing force, reducing uneven polishing and excessive removal.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
