MIL-STD-1553 terminal capable of simultaneous operation of BC, MT, and 2×RT.
In the aerospace industry, reliable communication is essential for data transmission. Data buses compliant with the MIL-STD-1553 standard are widely used in aircraft and spacecraft control systems and data collection systems. They are designed for use in harsh environments, requiring high durability and accurate data transmission capabilities. The HI-6130/31 enables simultaneous operation of BC, MT, and 2×RT, addressing diverse needs in aerospace data transmission. 【Application Scenarios】 - Aircraft flight control systems - Spacecraft data collection systems - Communication testing 【Benefits of Implementation】 - Realization of data transmission compliant with the MIL-STD-1553 standard - Flexible system construction through simultaneous operation of BC, MT, and 2×RT - Operating temperature range of -40°C to +85°C, with an optional extended operating temperature range of -55°C to +125°C
Inquire About This Product
basic information
**Features** - BC, MT, 2×RT - Host interface: HI-6130: 16Bit parallel bus, HI-6131: 4-wire SPI - 64Kbyte internal SRAM - Fully programmable bus controller with a 28 OP code instruction set - MT records commands and data separately, adding 16Bit or 48Bit time tags **Our Strengths** "Nacelle" meets customer needs through the sale of electronic components specialized for the aerospace, defense, and aviation markets. We provide Japanese technical documentation for the MIL-STD-1553 communication standard and offer technical support. Our goal is to ensure that all parties—customers, product suppliers, and Nacelle—achieve "good work results," contributing as an electronics import trading company.
Price range
Delivery Time
Applications/Examples of results
MIL-STD-1553 terminal equipment, flight control and monitoring, sensor interface, test equipment
Line up（6）
| Model number | overview |
|---|---|

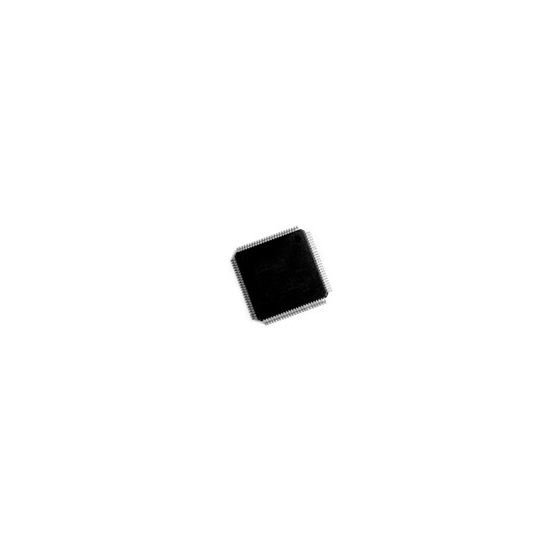

| HI-6130PQIF | 100 Pin Plastic Quad Flat Pack (LQFP), Temp Range:-40°C to +85°C |
| HI-6130PQTF | 100 Pin Plastic Quad Flat Pack (LQFP), Temp Range:-55°C to +125°C |
| HI-6130PQMF | 100 Pin Plastic Quad Flat Pack (LQFP), Temp Range:-55°C to +125°C, BURN IN |
| HI-6131PCIF | 64 Pin Plastic 9mm x 9mm Chip-Scale Package (QFN), Temp Range:-40°C to +85°C |
| HI-6131PCTF | 64 Pin Plastic 9mm x 9mm Chip-Scale Package (QFN), Temp Range:-55°C to +125°C |
| HI-6131PCMF | 64 Pin Plastic 9mm x 9mm Chip-Scale Package (QFN), Temp Range:-55°C to +125°C, BURN IN |
