[For Optical Adjustment] Vacuum-Compatible Small Linear Stage M-11x

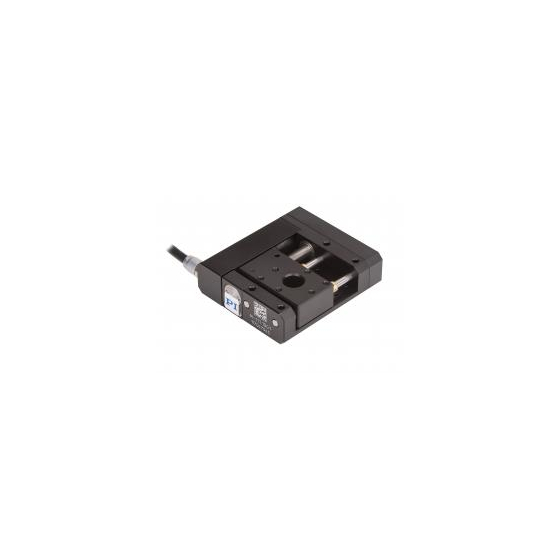

Compact design linear stages M-110, M-111, M-112
Compact linear stage with a size of 60mm square, compatible with XYZ axes.
In the optical industry, adjustment work requires precise positioning. In particular, the positioning of lenses and mirrors is a crucial factor that affects the performance of optical systems. Even minor misalignments can lead to a decrease in image quality and a deterioration in measurement accuracy. The M-11x series linear stage achieves high-precision positioning despite its compact size, streamlining the adjustment work of optical systems. 【Usage Scenarios】 - Position adjustment of lenses and mirrors - Fiber alignment - Precise positioning of optical components 【Benefits of Implementation】 - Improved optical performance through high-precision positioning - Reduced working time - Increased efficiency of adjustment work
Inquire About This Product
basic information
【Features】 - Travel range: 5–25mm - Minimum movement: 0.2µm - Load capacity: 30N - Size: 60×62×20mm～ - Can be set up on XY or XYZ axes and is compatible with vacuum (10^-6hPa) - Compact size with overlapping belt drive - Alternative type with DC gear motor: equipped with a rotary encoder on the motor shaft - Non-contact Hall effect reference point switch and limit switch - 2-phase stepper motor or closed-loop DC gear motor - Lead screw or ball screw with backlash compensation 【Our Strengths】 Based on over 50 years of experience from our headquarters in Germany and 30 years of experience from our Japanese subsidiary, we provide piezo stages and actuators adopted by research institutions and equipment manufacturers worldwide, leveraging our precision control technology. With a rich lineup and technical expertise, we propose optimal solutions tailored to our customers' needs.
Price range
Delivery Time
Applications/Examples of results
- Precision Micro Assembly - Research - Laser Marking - Automation - Optical Alignment
Line up（1）
| Model number | overview |
|---|---|
| Vacuum type up to 10-6 hPa: M-11x0.1VG1 | Supports bake-out temperatures up to 80°C. |
