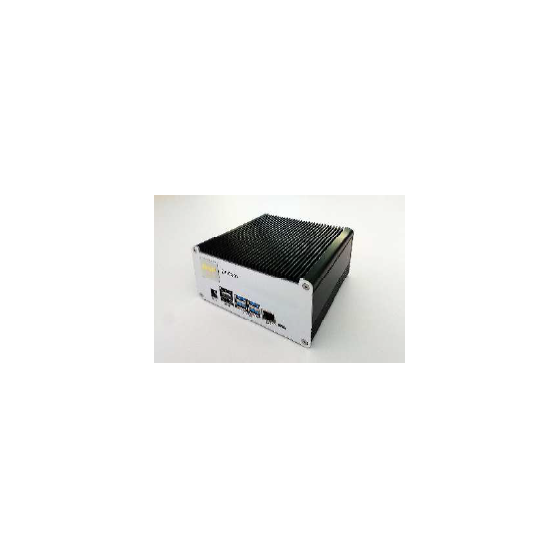

Low-cost MATLAB-compatible RCP for power control that can be tested with research budgets.
DT-0009
MATLAB-compatible RCP that can be tested with research funding. Reducing cost barriers.
In the energy industry, particularly in the field of power control, there is a demand for system efficiency and stable power supply. In the development of control systems, real-time verification is essential, and model-based development using MATLAB/Simulink has become mainstream. However, the introduction of real-time simulation environments poses challenges due to high costs. Low-cost RCP is a simulator that can execute control models created in MATLAB/Simulink in real time. It achieves a simulation cycle of 20μs without using FPGA and can independently control 12 channels of PWM. It offers an overwhelmingly low price as a MATLAB-based RCP. 【Usage Scenarios】 - Control verification of solar power generation systems - Control verification of wind power generation systems - Control development of power converters - Research related to smart grids 【Benefits of Implementation】 - Establishment of a real-time simulation environment at low cost - Rapid verification and optimization of control models - Reduction of development time - Support for the development of diverse power control systems 【Features】 - Compatible with MATLAB/Simulink - 20μs simulation cycle - Variable PWM carrier frequency
Inquire About This Product
basic information
【Specifications (Excerpt)】 ■CPU: ARM Cortex-A9 800MHz Dual-Core Processor ■Memory: 1GB DDR3 SDRAM ■A/D: 100ksps 12bit 4ch (0-4.096[V]) ■D/IO: Input: 16bit, Output: 16bit ■PWM: 12ch (3-phase up/down arms x2), Maximum carrier frequency 1MHz 【Other Specifications】 ■Counter: LVTTL 6ch, 32bit Up/Down, Counter response frequency 10MHz ■Ethernet: 1Gbps 1ch ■Software Implementation Method: MathWorks Simulink Coder ■Minimum Step Increment: 20μs ■UART: 1ch (USB connector for communication with host PC) *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
