High-Precision Z Stage L-310 for Precision Measurement Devices, Load Capacity 10 kg

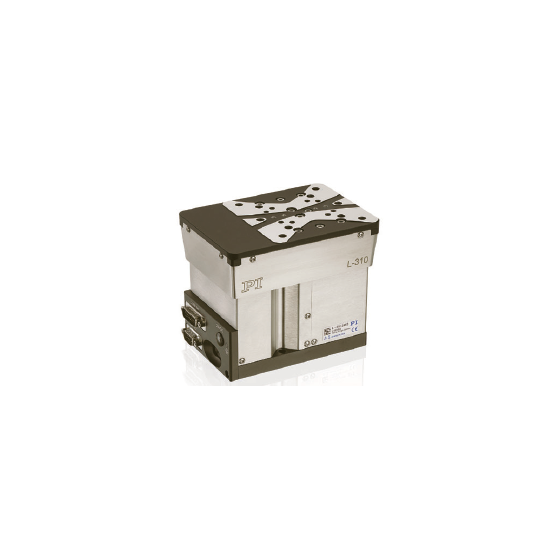

Precision Z Stage L-310
Adopts high-rigidity cross roller guide. Ideal for Z-axis positioning in precision measurement and research applications.
In precision measurement and analysis devices, even slight positional shifts in the Z direction can significantly impact measurement accuracy and reproducibility. This is especially true for measurements of fine structures and nanoscale analyses, where a high-precision and stable positioning mechanism is essential. The L-310 is a high-precision Z stage that employs ball screw drive and cross roller guides. It achieves high guide accuracy and rigidity, enabling stable Z-direction positioning in precision measurement devices and research applications. 【Usage Scenarios】 - Precision measurement instruments - Inspection devices - Research and development 【Benefits of Implementation】 - Improved measurement accuracy through high-precision positioning - Increased reliability due to stable operation - Enhanced work efficiency through smooth operation For detailed product specifications, please refer to the catalog. If you have any questions, please feel free to contact us.
Inquire About This Product
basic information
【Features】 - Stroke: 26 mm - Maximum load: 10 kg - High rigidity structure with cross roller guide - Ball screw drive with no backlash - Compatible with high-resolution encoders - Compatible with DC / BLDC / stepping motors 【Our Strengths】 Based on over 50 years of experience at our headquarters in Germany and 30 years of experience with our Japanese subsidiary, we provide piezo stages and actuators adopted by research institutions and equipment manufacturers worldwide, leveraging our precision control technology. With a rich lineup and technical expertise, we propose optimal solutions to meet our customers' needs.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■Industrial ■Precision positioning in research fields ■High duty cycle *For more details, please refer to the PDF document or feel free to contact us.
