Supports eye pattern testing of ultra-fast optical signals at 1.6T/800G/400G!

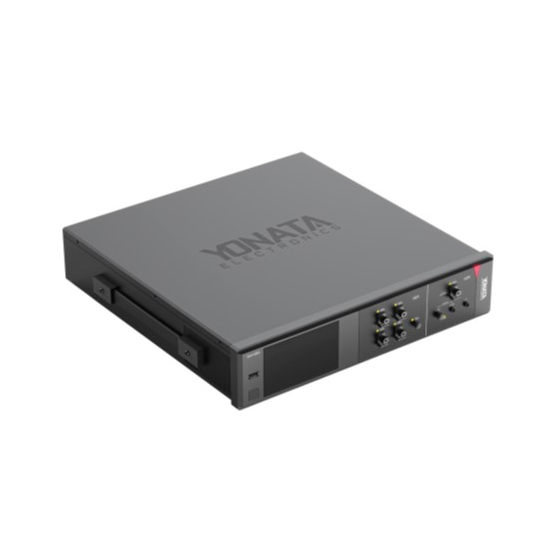

The DCA6065 is a high-performance 65 GHz sampling oscilloscope. It features a 65 GHz optical port bandwidth and offers selectable 1/2/4 channel configurations. It has a built-in TDECQ feed-forward equalizer (FFE) with a maximum of 64 taps. It supports flexible network configurations and includes a clock data recovery (CDR) system with 120 GBaud, or an independent CDR module can be added as an option. 【Key Specifications (Partial)】 ■ Optical Bandwidth: 65 GHz ■ Wavelength Range: 1250–1600 nm ■ Supported Standard Rates: 106.25/112 GBaud PAM4, 53.125/56 GBaud PAM4 ■ ADC Resolution: 14 Bit *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Other Main Specifications (Partial)】 ■ Fiber Optic Input: 9/125 um FC/UPC Single Mode ■ Calibration Wavelength: 1310/1550 nm ±10 nm ■ Maximum Input: +5 dBm ■ Average Power Measurement Range: -35 dBm to +1 dBm ■ Trigger Clock Frequency Range: 500 MHz to 15 GHz ■ Time Base Jitter: 130 fs @ typ. (RMS) *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
