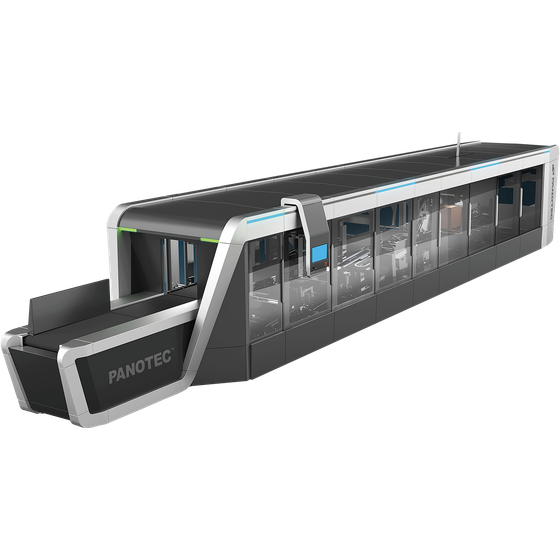

Fully automatic from size measurement to sealing and label application - Variable three-side automatic packaging machine.
This is a three-dimensional variable automatic packaging machine that automatically measures the three dimensions (length, width, height) of products and performs everything from processing cardboard cases optimized for product sizes to sealing and label application. Products placed on the conveyor have cases automatically generated based on size data, and the process consistently merges the product and case for sealing. It accommodates a wide range of product sizes from minimum to maximum, and can flexibly handle continuous processing of the same size as well as packaging operations where sizes change randomly. By automating the packaging process, it achieves increased efficiency, reduced labor, and optimized materials in packaging operations.
Inquire About This Product
Related Videos
basic information
- Packaging method: Three-dimensional variable automatic packaging (size measurement - case processing - sealing - label application) - Minimum packaging size: L200 × W150 × H50 mm - Maximum packaging size: L600 × W500 × H440 mm - Material used: PATADAN (accordion cardboard) - Processing capacity: Up to 780 units/hour (when continuous with the same size) - Random processing capacity: Approximately 530 units/hour (when random input) - Sealing method: Hot melt adhesive - Line configuration: Linear automatic packaging line - Supported functions: Product size measurement, case processing, product merging, sealing, label application - Options: Insertion of delivery notes, weight check, oversized discharge
Price information
For more details, please contact us.
Delivery Time
※It may vary depending on the timing of your consultation, so please feel free to contact us.
Applications/Examples of results
▼ Applications - Automated packaging process for EC and online shopping products - Variable packaging line for products with different three-dimensional sizes - High-speed automated packaging process for medium-sized products - Automated packaging line aimed at labor reduction ▼ Achievements - Shipping line for a wholesale business dealing with parts related to petroleum and gas combustion equipment and heating equipment - Shipping line for automotive parts - Shipping line for EC and logistics hubs
catalog（1）
Download All Catalogs
Company information
Currently in operation at Home Logistics, Monotaro, and Trusco Nakayama! In recent times, the importance of addressing labor shortages and work style reforms in factories and warehouses has been highlighted, leading to advancements in automation and optimization. Among these, the often-overlooked process of 'packaging' in logistics is crucial. TANAX's 'Just fit BOX' can automatically produce cardboard boxes perfectly tailored to the three-dimensional size of products, addressing labor shortages, reducing logistics costs, and contributing to environmental measures. The machine uses our original cardboard sheet 'PATADAN.' By inputting the three-dimensional size data of the product, it can easily and automatically manufacture cardboard cases. Since the flow direction is endless, it is possible to quickly and beautifully package even the longest products with a single cardboard sheet. There is no longer a need to order expensive custom-sized cardboard. By achieving a just-right size for products, material costs are reduced, and the amount of cargo that can be transported at once increases, ultimately leading to reduced transportation costs. We look forward to your inquiries regarding machine selection tailored to your company's challenges and requests for cost simulations.
