Portable size USB4 80Gb/s compatible ultra-fast storage

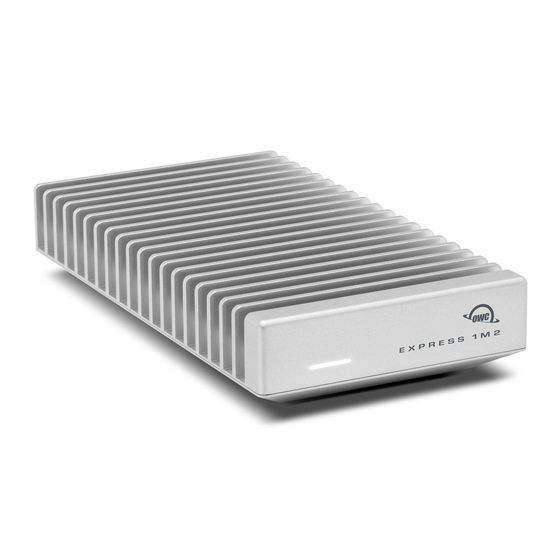

The OWC Express 1M2 80G is a portable storage case that can be used as an external drive by installing an M.2 NVMe SSD. It supports USB4 80Gb/s transfer with actual data transfer performance exceeding 6000MB/s, allowing for stress-free storage and operation of various data. With dimensions of 72mm wide x 133mm deep x 24mm high and a weight of 289g (excluding SSD), it features a lightweight portable body that can accommodate SSDs with performance and capacity tailored to your needs, achieving a portable high-speed, large-capacity storage environment. - Actual measured maximum data transfer performance exceeding 6000MB/s, with a heat sink structure to suppress speed reduction due to heat generation. - Compatible with two sizes of M.2 NVMe SSDs, powered by bus power, eliminating the need for an AC adapter. - Supports multi-OS/multi-device compatibility.
Inquire About This Product
basic information
◎ Main Specifications Product Name: OWC Express 1M2 80G Overview: Portable external case for M.2 NVMe SSD supporting USB4 80Gb/s Interface: USB4 x 1 Power Supply: Bus-powered via USB port Dimensions (Width x Depth x Height): 72mm x 133mm x 24mm Weight: 289g (excluding SSD) Included Accessories: USB4 cable, assembly tools (Phillips screwdriver), quick guide, warranty card
Price information
Open price
Price range
P2
Delivery Time
P2
※The delivery time will vary depending on the quantity, so please contact us.
Applications/Examples of results
- For portable, large-capacity data backup, archiving, and operational environments - As storage for editing, saving, and transferring digital video footage - For macOS system environment use
Detailed information
-
The product can accommodate one M.2 NVMe SSD. It supports two sizes (2242/2280) of M.2 NVMe SSDs. Additionally, this product operates on bus power from a USB4 port, so there is no need for an AC adapter or power cable; it can be connected to a computer with just a single USB4 cable. It supports USB4 80Gb/s, enabling high-speed data transfer of up to 80Gbps (theoretical maximum), and achieves data transfer performance exceeding 6000MB/s (*1) during SSD access. The body of the unit features an aluminum heat sink structure that excels in heat dissipation, reducing speed degradation caused by SSD heat generation.
Line up（1）
| Model number | overview |
|---|---|
| AMU-OWCUS4V2EXP1M2 | OWC Express 1M2 80G |
