The SGP-05 model has been further miniaturized and lightweight, with enhanced bearings and shaft seals. A rotation sensor for the shaft can be installed.
Standard Specifications Single Rotation Discharge Volume (Calculated Value): 0.5 cc Note 1 Permissible Discharge Pressure: 1.5 MPa (15.3 kgf/cm²) Permissible Rotational Speed: 2000 rpm Shaft Seal: O-ring (Material: FKM) Weight: 560 g (Part number 10 for the shaft, without rotation sensor) Application: Precision dispensing of high-viscosity liquids Applicable Liquids: Liquids at room temperature that have natural flowability and do not contain moisture or foreign substances. Note 5 Sealant and Adhesive Used: Loctite 510, Loctite 603 Note 1: This may vary depending on the viscosity of the fluid and discharge pressure. Experimental data regarding discharge characteristics can be provided. Note 2: The gear mechanism of the component (integrated drive gear and shaft) may have different shapes and dimensions. Please select accordingly. Note 3: A shaft rotation sensor can be provided for metering discharge. Please inform us if this is necessary. Note 4: Please refer to the parts list. Note 5: Please consult us regarding cases with no natural flow and high-viscosity substances.
Inquire About This Product
basic information
■Two ball bearings 628ZZ are used. ■Four FKM O-rings are used for the shaft seal. ■A shaft rotation proximity sensor is used to facilitate metering discharge, providing a signal for each rotation.
Price information
I will submit the estimate.
Price range
P2
Delivery Time
※It will take approximately 1.5 months.
Applications/Examples of results
■We will send a liquid at room temperature that does not contain moisture or foreign substances. ■It is currently incorporated into the lubricant inspection management system.
Detailed information
-

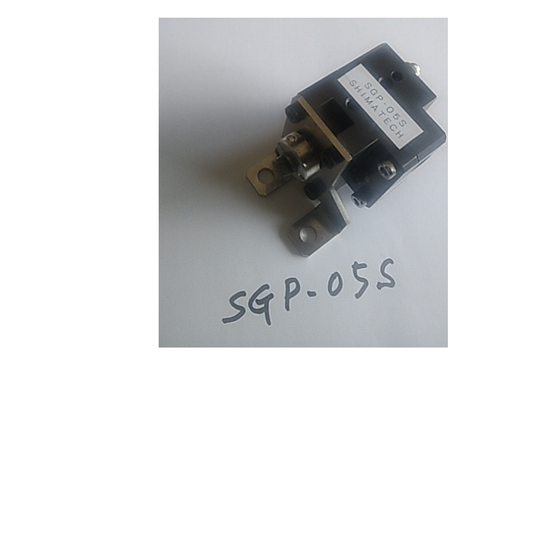

SGP-05S Option Gear Jig 5 (Part No. 9)
