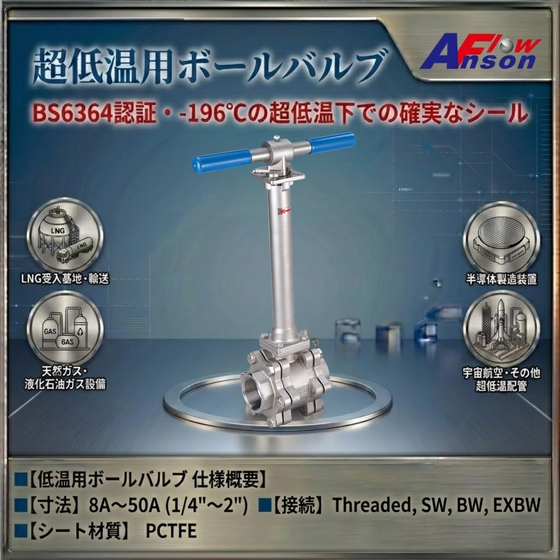

[BS6364 Certification Obtained] Ultra-Low Temperature Ball Valve (General Connection, High Pressure)
AF36C（Anson Flow）
BS6364 certification! High-pressure, ultra-low temperature valves used in aerospace and DNV classification. Ensures reliable fluid shut-off even in harsh environments at minus 196 degrees!
This is a high-pressure, ultra-low temperature ball valve that has obtained BS6364 certification and is rated for 2000 PSI. It ensures reliable fluid shutoff even at minus 196 degrees and is utilized in cutting-edge fields such as aerospace and DNV classification. **Features and Benefits** - **Automation Compatible:** Standard equipped with an ISO 5211 direct mount pad for easy actuator installation. - **High Pressure and Freeze Prevention Design:** Supports a class-leading 2000 PSI. The extended bonnet keeps the packing area away from low-temperature fluids to prevent freezing. - **Ultimate Safety:** Incorporates a ball cavity abnormal pressure relief mechanism and a blow-out and static electricity prevention stem. Achieves reliable sealing even under high pressure with PCTFE seats. - **Improved Operability and Maintainability:** Features self-adjusting live-loaded packing for extended lifespan. Designed for low operating torque to reduce strain. - **Clean Shipment:** Conducts oil-free treatment (degreasing cleaning) and ships sealed in plastic bags. Includes flow direction markings to prevent misinstallation.
Inquire About This Product
basic information
■Basic Specifications: ・Type = Extended bonnet type ultra-low temperature ball valve ・Operation method = Manual ・Temperature range = Compatible up to minus 196 degrees ・Certification obtained = BS 6364 certification obtained ■Series Development (AF36C Series): ・Specifications: High pressure 2000 PSI compatible ・Diameter size: 1/4" to 2" (8A to 50A) ・Connection types: Threaded (NPT/BSPT), socket welding (SW), butt welding (BW), etc. ■Options (Advanced control and structure): ・Selectable 2-way valve (standard) or 3-way valve (diverting/switching). ・Flexible support for V-port control for flow adjustment, high-frequency operation (high cycle), and various automatic valves (actuators). ■Compatible Materials: ・SCS14A (SUS316 / CF8M), SCPH2 (WCB). ・Seat material = PCTFE (seal material for ultra-low temperatures). *Additionally, flexible support for special alloys such as Hastelloy, Monel, and duplex stainless steel.
Price information
It varies depending on specifications, materials, and quantities. Please feel free to request a quote.
Delivery Time
※Standard products have a short delivery time. For special alloys and custom specifications, please inquire for the delivery schedule.
Applications/Examples of results
Our ultra-low temperature valves are active in various high-tech infrastructure industries around the world. 【Main Applicable Industries and Uses】 - Aerospace Industry: Control of ultra-low temperature fluids (such as liquid nitrogen and liquid oxygen) in rocket fuel facilities and combustion test sites. - Marine and Shipbuilding Projects: Meeting DNV classification requirements and contributing to the safe piping of LNG carriers and offshore structures. - Medical and Biotechnology: Freezing preservation equipment for cells and blood, and supply lines for MRI cooling fluids. - Food Manufacturing and Processing Equipment: Rapid freezing equipment and cooling process piping utilizing liquid nitrogen. - Industrial Gas Equipment: Filling stations for various gases (nitrogen, oxygen, argon) and high-pressure manifold piping. - Specialty Chemical Plants: Harsh process lines utilizing special alloys.
Company information
Company Overview With 20 years of proven excellence, we are a premier Taiwanese manufacturer specializing in high-quality industrial valves and precision fluid control components. Our products have a strong track record in various industrial equipment globally, including supplies to major U.S. semiconductor manufacturers and compliance with rigorous European DNV maritime projects. From general applications to severe environments, we deliver reliability worldwide. Our Core Strengths: 1. Strict Quality Control & Global Certifications We are certified with ISO 9001, PED 2014/68/EU, ATEX, API 607 (Fire-safe), and BS 6364 (Cryogenic). To guarantee 100% traceability, we conduct strict Positive Material Identification (PMI) testing using handheld analyzers and provide EN 10204 3.1 Material Test Reports (MTR) for all shipments. 2. Special Alloys & Severe Environment Solutions We excel in processing NACE MR-01-75 compliant special materials, including Hastelloy, Monel, Alloy 20, and Duplex/Super Duplex stainless steels. We provide highly reliable solutions for demanding applications across petrochemical, semiconductor, and other severe industrial sectors. 3. One-Stop OEM/ODM Customization From R&D design and casting to 5-axis CNC machining, automated valve assembly, and final testing, our entire manufacturing process is completed in-house. We respond rapidly to custom designs tailored to your specific piping layouts and fluid conditions.
