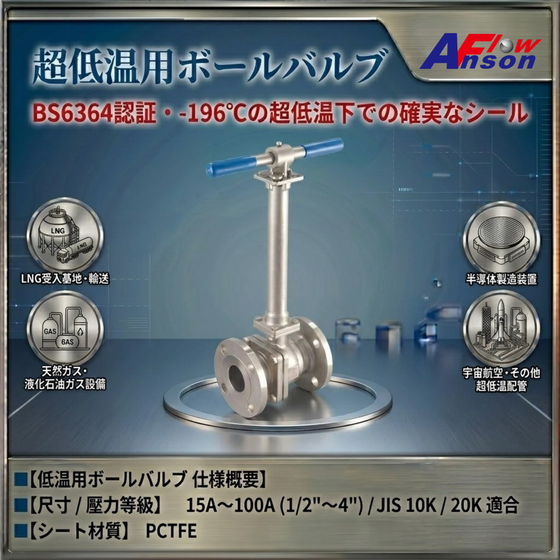

【BS6364 Certification】Cryogenic Ball Valve (Flanged Type, JIS Compliant)
AF51C / AF53C（Anson Flow）
BS6364 certification! Ultra-low temperature valves used in aerospace and LNG ship classification. Reliable shut-off even at minus 196 degrees! Compatible with JIS, ANSI, and other flanges.
This is a flange-type high-quality ultra-low temperature ball valve that has obtained official certification under the strict international standard "BS 6364." It ensures reliable fluid shut-off at minus 196 degrees and is used in cutting-edge sites around the world, including the aerospace industry and DNV ship classification projects. 【Main Features and Benefits】 This flange-type ultra-low temperature ball valve has obtained BS6364 certification. It achieves reliable fluid shut-off even at minus 196 degrees and is active in cutting-edge fields such as aerospace and DNV classification. 【Features and Benefits】 - Automation Compatible: Standard equipped with an ISO 5211 direct mount pad for easy actuator installation. - Freeze Prevention Design: The extended bonnet keeps the packing area away from low-temperature fluids, completely preventing freezing. - Ultimate Safety: Features a ball cavity abnormal pressure prevention mechanism and a blow-out and static electricity prevention stem. Ensures reliable sealing with a PCTFE seat. - Improved Operability and Maintainability: Self-adjusting live load packing extends service life. Low operating torque design reduces strain. - Compliance with Various Standards: Compatible with JIS/ANSI/DIN flange standards, allowing for smooth integration into large-scale plants.
Inquire About This Product
basic information
■Basic Specifications: - Type: Extended bonnet type flange-mounted ultra-low temperature ball valve - Operation Method: Manual (easy automation with ISO 5211 mount pad) - Applicable Temperature: Minus 196 degrees to plus 200 degrees - Certification Obtained: BS 6364 certification obtained ■Series Development and Diameter Sizes: - AF51C: Compatible with JIS 10K/20K, ANSI 150/300 - AF53C: Compatible with DIN PN10 to PN40 - Sizes: 15A to 100A (1/2" to 4" / DN15 to DN100) ■Options (Advanced Control and Structure): - Flexible support for V-port control for flow adjustment, high-frequency operation (high cycle), and various automatic valve (actuator) configurations. ■Compatible Materials: - SCS14A (SUS316 / CF8M), SCPH2 (WCB), etc. *Also flexible support for special alloys such as Hastelloy and Monel.
Price information
It varies depending on specifications, materials, and quantities. Please feel free to request a quote.
Delivery Time
※Standard products have a short delivery time. For special alloys and custom specifications, please inquire for the delivery schedule.
Applications/Examples of results
Our ultra-low temperature valves are widely used in plants and infrastructure facilities that require large-scale fluid control. 【Main Applicable Industries and Uses】 - Marine and Shipbuilding Projects: Safe fluid control in large-scale piping at LNG terminals and carriers, meeting DNV classification standards. - Steel and Air Separation Units (ASU): Main piping for large-scale plants that separate and refine large volumes of oxygen, nitrogen, and argon. - Aerospace Industry: High-precision handling of ultra-low temperature fluids at rocket launch sites and large testing facilities. - Energy and Infrastructure: Manufacturing, storage, and transportation lines for LNG (liquefied natural gas) and ethylene plants. - Food and Refrigeration Equipment: Refrigerant supply systems for large-scale rapid freezing lines in factories. - Semiconductor and Specialty Chemical Plants: Construction of highly corrosive lines utilizing special alloys and various flange standards.
Line up（2）
| Model number | overview |
|---|---|
| AF- 51C (Compatible with JIS / ANSI standards) | BS 6364 certification obtained. Compatible with JIS 10K/20K and ANSI Class 150/300. Diameter: 15A to 100A (1/2" to 4"). Standard equipped with ISO 5211 mount pad for easy automation. |
| AF- 53C (DIN / PN standard compliant) | BS 6364 certification obtained. Complies with European standards DIN PN10 to PN40. Sizes: DN15 to DN100. Proven performance in aerospace and DNV classification, ensuring reliable shut-off even at ultra-low temperatures of minus 196 degrees. |
