Tohoku Univ. Technology：Temperature sensing and vibration detection method：T25-060
Wiring-free miniature temperature sensor

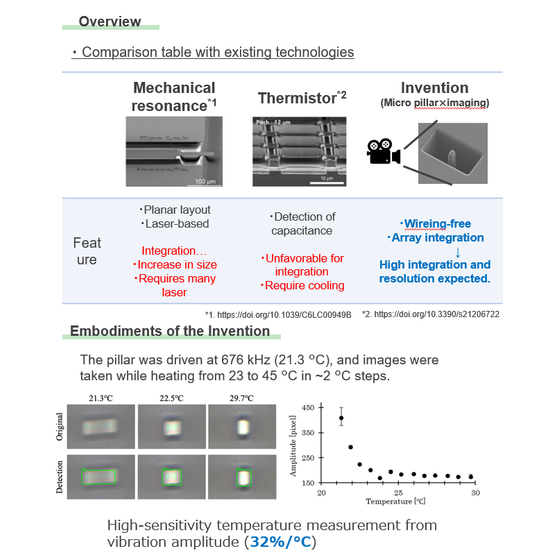

Conventional thermal property measurements using thermistors and thermocouples require electrical wiring, which limits further improvements in sensor density and sensitivity. Resonant temperature sensors using in-plane mechanical resonators also suffer from low areal density, and laser-based readout becomes impractical when many sensing points are required. To overcome these limitations, the inventors developed a wiring-free temperature sensor that optically detects the resonance vibration amplitude of a high–aspect ratio micro-resonator. This architecture is well suited to dense array integration and achieves a temperature sensitivity of 32%/°C, exceeding that of frequency-shift-based resonant sensors (35 ppm/°C) and thermistors (2.0%/°C), making it promising for high-sensitivity temperature measurement.
Inquire About This Product
basic information
please contact us or refer to the PDF for more details.
Price range
Delivery Time
Applications/Examples of results
please contact us or refer to the PDF for more details.
