A testing stage suitable for fixing thin materials such as film, metal foil, and paper!

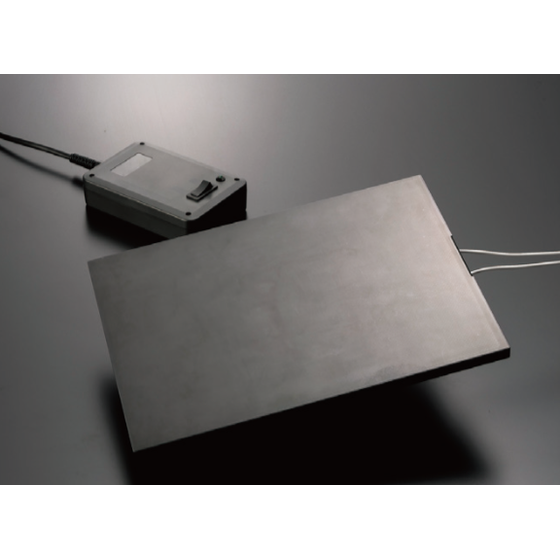

We would like to introduce the "Electrostatic Adsorption Stage for Inspection Equipment" that we handle. It can be used for image processing and laser inspection with a black surface finish. Due to surface adsorption, it does not apply localized stress to thin materials. This inspection stage is suitable for fixing thin materials such as porous materials, films, metal foils, and paper. 【Features】 ■ No localized stress on thin materials due to surface adsorption ■ Usable as a stage for inspection machines using image processing and lasers with a black surface finish *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Partial)】 ■Material of the object: Conductor to Insulator ■Flatness: R 30um or less ■Surface roughness: 10um or less ■Electrostatic chuck surface: Black polyimide ■Vertical holding force: Conductor/Semiconductor 40gf/cm2 (at applied voltage ±1kV) ■Applied voltage: ±1.0kV adjustable (±0.7/1.0/1.4kV) fixed at shipment *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■ Fixing porous materials ■ Fixing film materials ■ Fixing metal foils ■ Fixing thin materials such as paper ■ Stage for image processing inspection machines ■ Stage for inspection machines using lasers *For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Tsukuba Seiko Co., Ltd. is a company primarily engaged in the development, manufacturing, and sales of electrostatic adsorption systems. Our electrostatic chucks are designed to assist you in improving yield and production efficiency for your technological innovations. We can accommodate your specifications from prototypes to mass production, so please feel free to contact us.
