【1m Width・Low Price】Ideal Small Blow Molding Machine for Prototyping and Small Batches

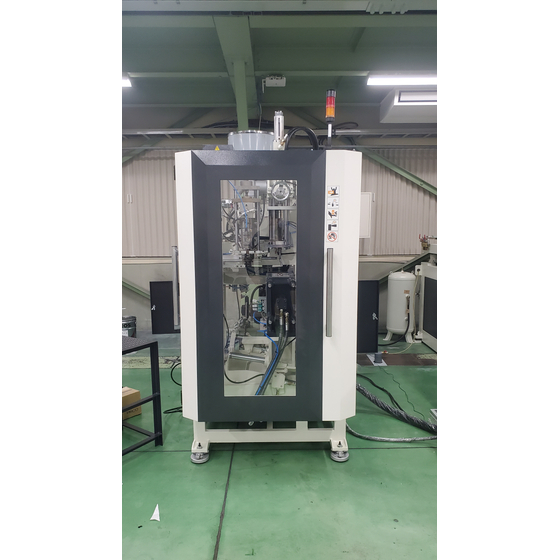

PK-42HS / PARKER
Overwhelmingly low price and a space-saving design with a width of just 1.0m! An ideal small direct blow molding machine for prototypes and small lot production.
【Problem】Are you struggling with wanting to produce small lots of containers or prototype new products, but finding that "the initial cost of introducing dedicated machinery is too high" or "there's no space in the factory for new machines"? 【Affinity】As the demand for small-batch, diverse production increases, large and expensive equipment poses a high barrier to investment recovery and takes away the flexibility of production lines. 【Solution】The "PK-42HS," which has numerous achievements in Japan, is a compact direct blow molding machine that achieves an overwhelming low price. Its greatest feature is its extremely compact design, with a width of only 1.0m (1060mm). It can be installed in a small amount of available space, minimizing changes to the factory layout. 【Offer】Compatible with PE and PP materials, it specializes in the production of small containers ranging from 20 to 200ml. It can be introduced at a low cost, making it not only excellent as a mass production machine but also as a testing and prototyping machine for development departments. 【Narrow down & Action】Because it is the "PARKER" brand with numerous domestic achievements, its quality and stability are guaranteed even at a low price. For more details and demonstrations of this cost-effective machine, please feel free to contact us.
Inquire About This Product
basic information
【Main Specifications (PK-42HS Single Head)】 - Molding capacity: 20 to 200ml / Diameter: φ15 to 100mm - Applicable resins: PE, PP - Extrusion screw: 42mm (L/D 1:22) - Extrusion amount: 15kg/h (for PE) - Clamping force: approximately 0.8t (momentarily 1.0t) - Machine dimensions: L1890×W1060×H2100mm / Weight: 1.5ton - Total power consumption: 15kW (average about 9kW) 【Benefits of Features】 ■ Extremely small footprint (width 1.0m) Effectively utilizes limited space. Easy to install multiple units in parallel, facilitating the establishment of small-lot, diverse product lines. ■ Flexible blow device adjustment mechanism Allows for fine positional adjustments up, down, left, right, and front, back. Significantly reduces downtime for frequent mold changes and setups during prototyping and multi-product production. ■ Independent control panel Separates the control unit from the main body, eliminating the impact of machine vibrations on electronic components. Operation confirmation via lamps can be performed intuitively, ensuring safe operation.
Price information
The biggest appeal of this machine is its "overwhelmingly low introduction cost." Compared to larger machines, the initial investment can be dramatically reduced, allowing for a quick return on investment, and internal approvals for small lot production or prototype development can proceed smoothly. We will provide you with an optimal estimate and an investment recovery simulation tailored to your product size and production lot (single or double head) for free. Please feel free to consult with us first.
Delivery Time
Applications/Examples of results
【Main Uses】 Ideal for prototyping and small-lot production of small hollow containers ranging from 20 to 200ml (the double-head machine "PK-42HD" is suitable for up to 100ml). - Sample containers for cosmetics, shampoos, conditioners, etc. - Small bottles for medical use, such as eye drops and pharmaceuticals. - Small containers for beverages and food, as well as parts for toys. 【Implementation Results and Success Stories】 There are numerous operational achievements in molding sites and development departments within Japan.
Detailed information
-
■Case Study: A Molding Manufacturer (Building Materials) "We were considering a product with an extremely long and special shape exceeding 40cm, but other companies proposed large custom machines, which posed challenges in terms of cost and installation space. When we consulted with Keiyu Sangyo, they solved the issue by customizing the PK-42HS with a width of 1m to fit our needs. We successfully internalized the production of the special product at a cost that was a fraction of that of the large machines."
