Overwhelming color reproduction with a 3CMOS prism without color interpolation. MCL compatible. Made in Japan with a reliable 3-year warranty.

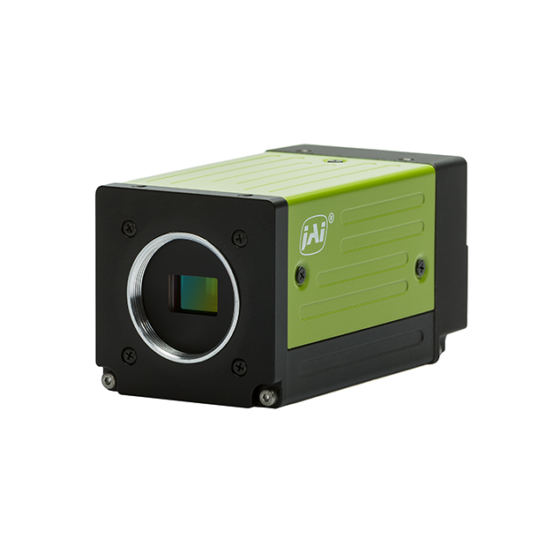

The "AP-3200T-PMCL" is an industrial 3CMOS color camera that spectrally separates R/G/B using an optical prism and individually captures them with three CMOS sensors. It completely eliminates color bleeding and false colors characteristic of the Bayer method, achieving extremely high precision in color reproduction and spatial resolution. With a high-speed Mini Camera Link (MCL) interface, it enables high-speed imaging at 3.2 megapixels with up to 55 fps. Furthermore, it ensures high quality and stable supply unique to "Made in Japan," contributing to long-term TCO reduction. 【Features】 ■ 3CMOS prism spectroscopy: True color images with no color interpolation, zero false colors, and color bleeding ■ Made in Japan with a reliable 3-year warranty: Promises stable long-term supply and quality assurance ■ 3.2 megapixels (2064×1544), high-speed imaging at up to 55 fps ■ MCL interface: Supports high-speed transfer of large volume data ■ Equipped with Sony's IMX265 sensor (pixel size 3.45µm) ■ Flexible optimization of frame rate through ROI (Region of Interest) readout *For more details, please download the PDF document or feel free to contact us.
Inquire About This Product
basic information
■Main Specifications ・Resolution: 3.2MP (2064 x 1544 px) ・Frame Rate: 55 fps ・Interface: Mini Camera Link (PoCL) ・Sensor: 3CMOS RGB (IMX265) ・Pixel Size: 3.45 x 3.45 µm
Price information
For more details, please feel free to contact us.
Delivery Time
※For more details, please feel free to contact us.
Applications/Examples of results
■ Industrial and Factory Automation (FA) Field - Integration into large inspection equipment: In environments where the distance from the camera to the image processing PC is significant (requiring long cables), such as in automotive parts inspection (paint finishing, inspection of LED and instrument light colors). - Printing and packaging inspection: Inline inspection of printed materials such as currency, pharmaceutical packaging, and labels, which require extremely strict color management and high precision spatial resolution. - Electronic components and wafer inspection: Detection of minute pixel defects and slight discoloration on printed circuit boards (PCBs) and flat panels. ■ Medical and Life Sciences Field - Microscopic observation and pathological diagnosis: High-resolution imaging applications for human tissue samples, cells, and body fluid samples. (Compatible with Image-Pro software) - Quality control of medical and pharmaceutical products: Strict color and appearance inspection applications for medical products such as ampoules, capsules, and multilayer tablets.
catalog（1）
Download All Catalogs
Company information
JAI is a manufacturer of industrial imaging equipment that supplies high-performance CMOS/CCD cameras across a wide range of fields, including machine vision (inspection and measurement of various industrial products), medical, science, and ITS (intelligent transportation systems). We offer a wide range of products, primarily area scan and line scan cameras, with resolutions ranging from VGA to 20 million pixels. Our unique feature is that we provide not only single-chip cameras but also innovative multi-chip cameras developed based on our proprietary prism technology.
