Modular exchange-type high-performance solid-state NMR MAS probe
PHOENIX HXY Premium Probe

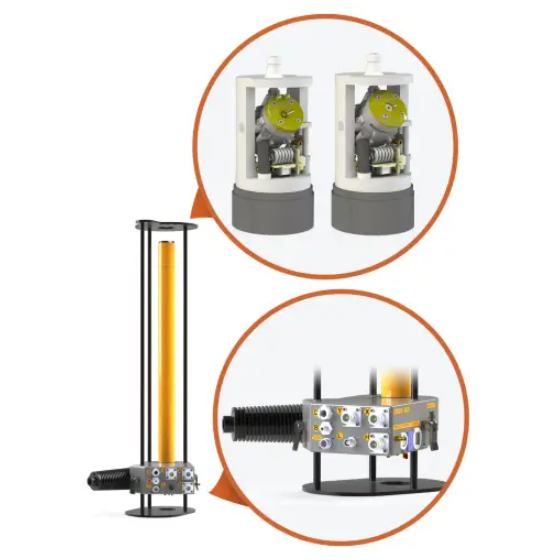

Multiple MAS probe heads can be exchanged for a single probe base.
The PHOENIX HXY Premium Probe is a high-performance MAS probe for solid-state NMR developed by PHOENIX NMR. It adopts a "probe head exchange system" that allows multiple MAS probe heads to be exchanged on a single probe base, enabling flexible system configuration according to rotor size and observed nuclei. Based on the T3 probe technology from the former Chemagnetics and Varian companies, it inherits high RF performance and excellent operability. It is capable of supporting a wide range of solid-state NMR applications, including multiple resonance experiments, low gamma nucleus measurements, and 2H Lock.
Inquire About This Product
basic information
The PHOENIX HXY Premium Probe is a high-performance solid-state NMR probe that features an interchangeable MAS probe head. It can flexibly accommodate multiple sizes and multiple nuclei configurations on a single probe base, providing strong support for high-field solid-state NMR research. In addition to excellent RF performance derived from T3, it also supports Low Gamma nuclei and 2H Lock, enabling advanced multi-resonance experimental environments. 【Specifications】 - Supported RF: HXY, FXY, HFXY, HX, FX, HFX - Low Gamma measurement: Optional support - 2H Lock: Supported - Rotor sizes: 1.2 / 1.6 / 2.5 / 3.2 / 4 / 5 / 6 mm - Supported frequency: 400 to 900 MHz - Temperature variable range: -125 to +125 ℃ - Probe structure: Interchangeable probe head system
Price range
Delivery Time
Applications/Examples of results
【Probe Head Exchange System】 While sharing a single probe base, only the MAS module part can be exchanged according to the application. It can flexibly accommodate different rotor sizes and nuclide configurations. 【High-Performance RF Design】 Based on T3 probe technology, the high-efficiency RF design enables high-sensitivity and stable solid-state NMR measurements. 【Wide Nuclide Compatibility】 In addition to H/X systems, it also supports 19F, multiple resonance, low gamma nuclei, and 2H lock, catering to diverse research needs. 【Wide Temperature Variable Range】 It supports a range from -125 °C to +125 °C, allowing solid-state NMR experiments in low and high-temperature environments.
