Delivery record: High-concentration air transport system for cement mixed products

By using a pipe diameter of 125A for alternate transportation, a transport capacity of 30 tons per hour is possible!

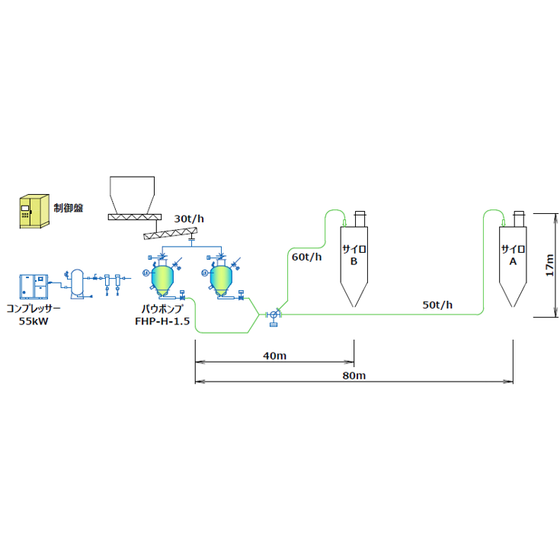

This is a "high-density air transport system" for a cement mixture (90% cement and 10% additive). In the existing low-density air transport system, a maximum of 20 tons per hour could be transported with a pipe diameter of 150A. However, by installing two powder pumps and using a pipe diameter of 125A for alternate transport, it became possible to transport 30 tons per hour. As a result, it became possible to transport 50 tons per hour to silo A and 60 tons per hour to silo B. [Case Summary] ■ Transport capacity: 30 tons per hour (continuous transport) ■ Transport distance: Silo A 80m, Silo B 40m ■ Transport method: High-density air transport ■ Two powder pumps were installed ■ It became possible to transport 50 tons per hour to silo A and 60 tons per hour to silo B *For more details, please refer to the related links or feel free to contact us.
