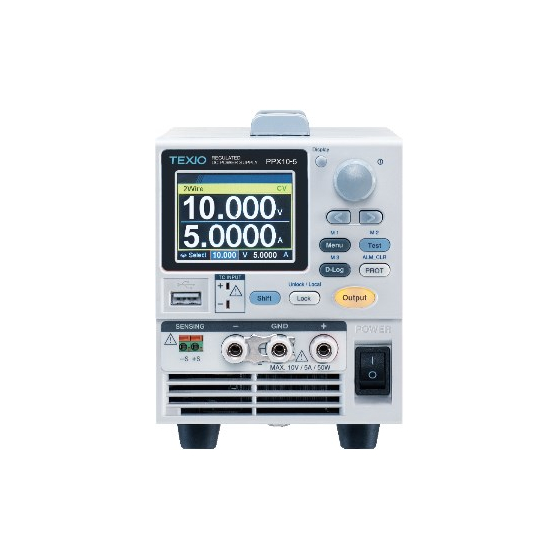

100W class multifunctional, high-precision, low-noise DC stabilized power supply
The PPX series is a compact and low-noise DC stabilized power supply. It achieves high functionality and high precision. Additionally, it is equipped with a temperature measurement and judgment function that supports thermocouples for the first time.
Inquire About This Product
basic information
● Due to the dropper type, it achieves low noise (0.35mVrms) and high-speed transient response characteristics (<50μs). ● The rise and fall times of voltage and current can be set independently. ● It offers high-precision measurements with four current ranges and two voltage ranges. ● It has a constant power setting function that easily accommodates constant heating, such as with heaters. ● Equipped with a socket for miniature connectors for K-type thermocouples for temperature measurement. ● Panel settings and a sequence function with specified time. ● Logging function that can record voltage, current, and temperature. ● External analog control allows for voltage or resistance value control and monitoring output of voltage/current values. ● The communication interface includes USB, LAN, RS-232C, and RS-485 as standard, with the G type equipped with GP-IB for communication control. (RS-232C/RS-485/GP-IB use dedicated connectors) ● Dimensions and weight: 107(W) x 124(H) x 313(D) approximately 5.5kg.
Price information
For details about the product, please feel free to contact us.
Delivery Time
Applications/Examples of results
For details about the product, please feel free to contact us.
catalog（1）
Download All Catalogs
News about this product（1）
Company information
Texio Technology is a manufacturer of DC stabilized power supplies and electronic/electrical measuring instruments. Including measuring instruments under the Trio and Kenwood brands, we have over 50 years of history and achievements in our business. Our main products include well-established general-purpose measuring instruments such as DC stabilized power supplies, electronic load devices, oscilloscopes, multimeters, and function generators, as well as custom power supply units tailored to meet individual customer needs. We create valuable power and measuring instruments for the next generation and support our customers from product development to production and repair.
