Operate with a tablet-like feel, top-level flaw detection performance.

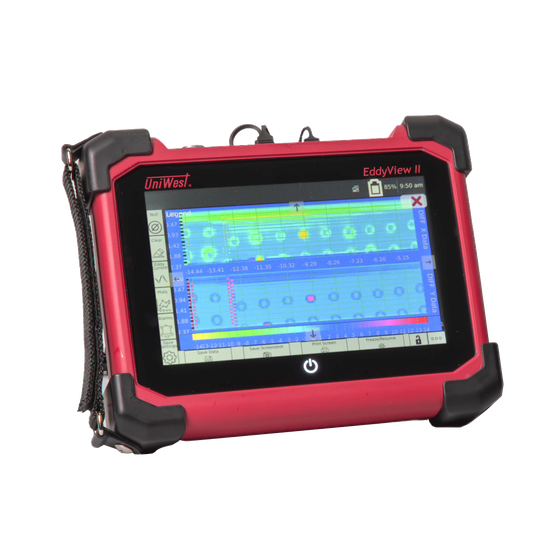

EddyView2 is the latest eddy current flaw detector in the EddyView series, which has received high acclaim in the aerospace and automotive industries. It retains the industry-leading flaw detection performance characteristic of the EddyView series while incorporating features such as an array probe, touch panel, smart probe, and dust and water resistance (IP65). It supports array probes with up to 32 coils and displays beautiful C-scan flaw detection images in real-time. With the newly adopted touch panel and redesigned menu system, adjusting detection conditions and confirming and saving detection results can now be done much more quickly than before. It can simultaneously use up to eight alarms, allowing for multiple NG settings based on crack depth, detection of the distance between the probe and the test specimen (too close or too far), and material identification, among various other applications. The IP65 dust and water-resistant sealed housing ensures safe use even in harsh environments with dust. For external interfaces, it offers digital I/O options such as USB and Ethernet, as well as traditional analog outputs, enabling broad compatibility with external devices.
Inquire About This Product
basic information
Frequency range: 20Hz - 15MHz Multiplex frequency: Up to 4 Gain: 0 - 114.0dB (0.1dB step) Number of channels: 1 channel (supports virtual multi-channel via multiplexer) Inspection screen: Phase plane, strip chart, oscilloscope, C-scan Trace display: 0 to 10 seconds Rotation: 0-359.9° (0.1° step) Supported probes: Absolute, differential, absolute reflection, differential reflection Array probe: Up to 32 coils Probe drive: LOW (2V), MED (4V), HIGH (7V), 0-100% Probe connection: LEMO 16-pin Filter: High pass 0-10KHz, low pass 0-10KHz *For other uses, please check the product page.
Price range
Delivery Time
Applications/Examples of results
Detection of surface defects such as cracks, material identification, heat treatment assessment, conductivity, and film thickness measurement.
