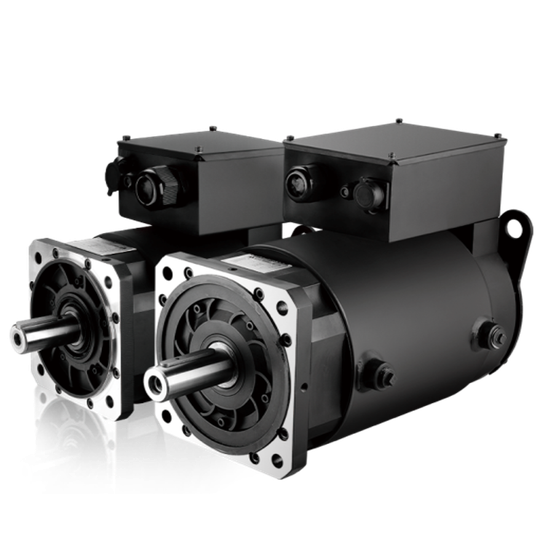

Achieves high efficiency exceeding IE4. Compact and lightweight, it can replace general-purpose induction motors.
This is an IPM motor that achieves significant efficiency improvements by embedding permanent magnets in the rotor, while also having high responsiveness. Due to its structure that does not require a magnetic pole position sensor, wiring is easy. It is smaller and lighter compared to general-purpose induction motors, contributing to space-saving in machinery. The shaft dimensions and mounting dimensions are the same as those of general-purpose induction motors of the same capacity, allowing for direct replacement. We can also flexibly accommodate mounting requests as needed. 【Features】 - Sensorless structure - Significant energy-saving effects compared to IE3 - Compact and lightweight design with aluminum frame - Mounting compatibility with general-purpose induction motors *An inverter is required for operation. *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 - Rated Voltage: 400V (200V (220V) specifications are also available upon request.) - Rated Output: 0.75 to 250kW - Frame Number: 90s to 315L - Maximum Torque: 150% TN for 45 seconds - Number of Poles: 4/6/8 poles - Protection Class: IP55 - Cooling Method: Totally enclosed external fan type (IC411) / Forced cooling (independent fan cooling IC416) - Heat Resistance Class: 155(F) - Connection Method: Direct coupling - Rotation Direction: Counterclockwise (CCW) as viewed from the load side *For more details, please refer to the PDF document or feel free to contact us.
Price information
Prices may vary depending on your specifications and order quantities, so please feel free to consult with us.
Delivery Time
※The delivery date may vary depending on your specifications and order quantity, so please feel free to consult with us.
Applications/Examples of results
【Applications】 - Pumps - Fans - Compressors - Metal processing machines - Plastic molding machines - Hydraulic equipment - Powder equipment - Elevators - Conveyors - Commercial washing machines - Energy-saving solutions for factory equipment, etc. *For more details, please refer to the PDF document or feel free to contact us.
catalog（2）
Download All Catalogs
News about this product（1）
Company information
Nihon Koden Kogyo Co., Ltd. is a company that operates as an OEM manufacturer of electrical components, motors, hydraulic equipment, electronics products, and more. We pursue high technology and quality, as well as superior service systems, to meet a wide variety of needs. Through our response to increasingly sophisticated demands such as energy conservation, cost reduction, and clean energy, we strive to create products that are friendly to the global environment.
