Contributing to quality improvement, defect reduction, and shortening adjustment time! A case study utilizing uniform pressure confirmation in a film application device.

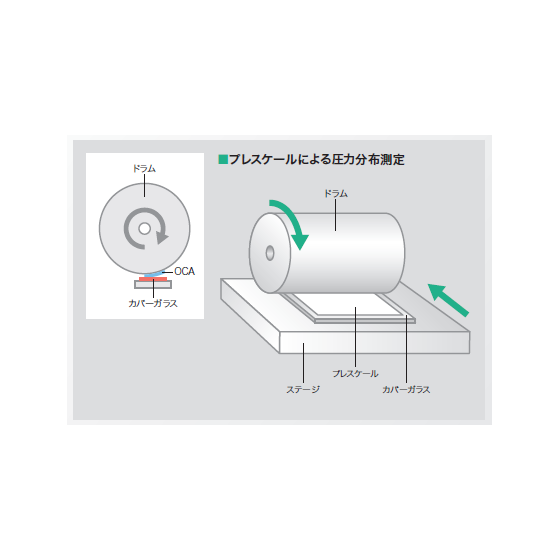

This is a case study on the use of "Press Scale" in film application equipment for touch panel and LCD panel manufacturers. When attaching functional films to cover glass, if the pressure balance is poor, bubbles or wrinkles and other defects may occur. By placing the Press Scale between the cover glass and the drum and applying pressure under normal conditions, it is easy to check for foreign substances or scratches on the drum by determining the color development state. [Case Overview] ■ Purpose: Confirming uniform pressure in film application equipment ■ Example of target products: Smartphones, tablet devices ■ Implementation effects: - Prevents quality abnormalities in advance and improves yield - Allows for quick confirmation of uniformity during design and maintenance *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Our Measurement Film Solutions Division offers a variety of products, including high-temperature press scales and UV scales. We have the film "Press Scale," which allows for easy confirmation of invisible pressure and pressure distribution, and the revolutionary thermal distribution visualization film "Thermo Scale," which enables simple judgment of thermal distribution through color changes. Additionally, we provide a wide range of excellent inspection and measurement products that enhance precision, efficiency, and stability in manufacturing, inspection, and testing processes, all developed from the production processes of Fujifilm products.
