Contributing to the reduction of defects! Introducing examples of finishing evaluations for rubber-coated rolls.

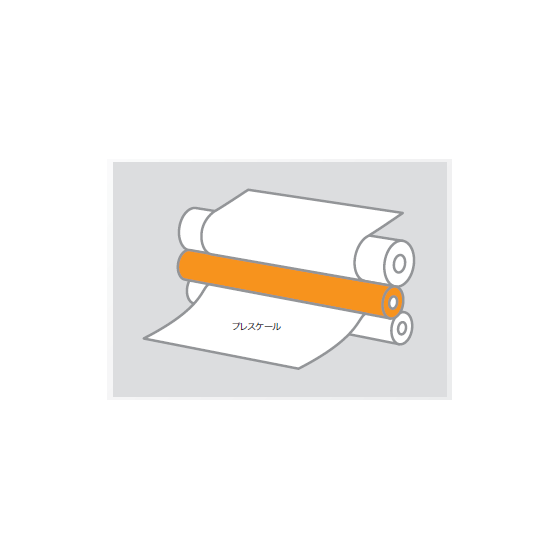

This is a case study of finish evaluation using "Press Scale" for customers in industries such as display and printed circuit boards. If there is poor adhesion between the iron core and rubber of the nip roll for lamination, or if there are scratches on the rubber, lamination defects will occur. Additionally, if there are variations in rubber thickness or eccentricity, uneven nip pressure distribution will lead to transport defects. By using this product, it is easy to evaluate poor adhesion between the iron core and rubber, as well as fine scratches. 【Case Overview】 ■ Purpose: Setting up lamination films, investigating causes of defects when they occur ■ Benefits of Implementation - Approximately half a day's time saved on roll switching and other processes - Prevention of material loss during defect occurrences - Prevention of quality abnormalities in advance, leading to improved yield *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
