Contributing to risk reduction and loss reduction! A case study on checking the sealing performance of cylinder head gaskets.

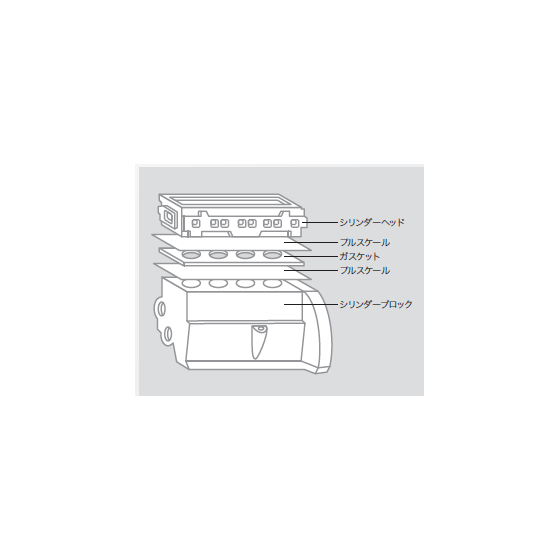

We would like to introduce a case study using our "Presscale" in the automotive industry. In automotive engines, gaskets are designed for each model, but there was no means to confirm whether air and other elements in the cylinder of prototypes or newly manufactured products were properly sealed. By placing this product between the cylinder block and the cylinder head and tightening the head bolts under normal conditions, we can confirm whether the necessary parts are securely sealed. 【Case Overview】 ■ Purpose: To continuously verify the sealing performance of gaskets and enhance design efficiency and quality. ■ Implementation Effects: - Significantly improved design efficiency compared to the trial-and-error approach in practical applications. - Eliminated uncertainty by verifying results with Presscale as needed. - Contributed to the progress of design development, enabling stable delivery. *For more details, please download the PDF or feel free to contact us.
