Power switch and light intensity adjustment volume

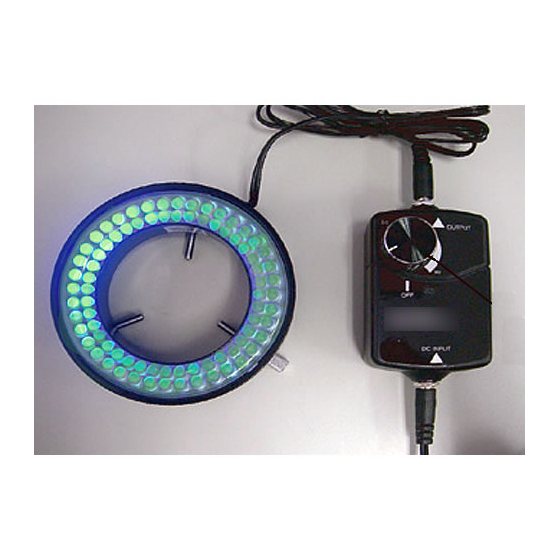

■Usage Instructions <1> Insert the LED ring light main unit into the "OUTPUT" side of the controller. <2> Insert the AC adapter into the "DC INPUT" side of the controller. Connect the plug on the opposite side of the AC adapter to a 100V outlet. <3> Turning the brightness adjustment volume clockwise will turn on the LED. Continuing to turn it will increase the brightness.
Inquire About This Product
basic information
■Specifications Model Number: M511RLED-80G Number of LEDs: 80 lights Dimmer Input: AC100–240V Dimmer Output: DC15V 0.8A Ring Diameter: Inner Diameter Φ60mm Outer Diameter Φ96mm
Price range
Delivery Time
Applications/Examples of results
Turning it counterclockwise decreases the brightness, and eventually, the LED will turn off.
