It achieves high precision even under high pressure and low flow conditions.

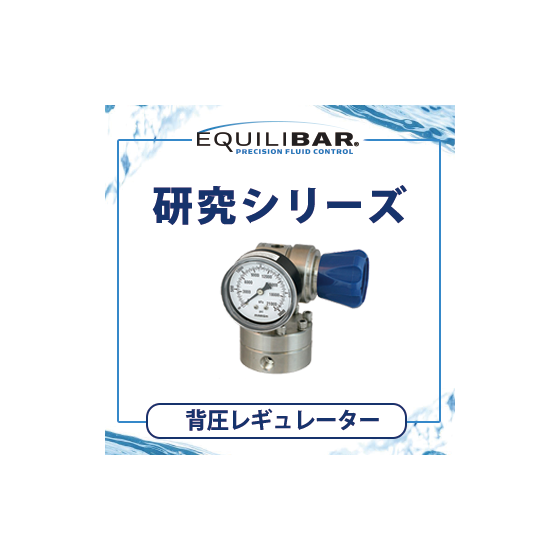

We solve critical performance issues for laboratories and gas analysis systems around the world. They are particularly popular in applications such as catalyst research and reservoir core analysis. Equilibar features a design in the Research Series with multiple trim styles and a variety of diaphragm materials, accommodating many demanding research environments. The back pressure regulators in the Research Series handle a very wide range of flow rates, pressures, and temperatures. Materials include Hastelloy, SS316L, PTFE, and FFKM (Kalrez). The maximum temperature range for research back pressure regulators is standard at 150°C, with a maximum of 200°C using Viton seals and metal diaphragms, and up to 325°C with Kalrez seals and metal diaphragms. For extreme temperatures, the High-Temperature (HT) model can be used in processes up to 450°C.
Inquire About This Product
Related Videos
basic information
The Research Series valves are available with port sizes of 1/16 inch, 1/8 inch, and 1/4 inch, accommodating most low flow and low dead volume requirements. For larger port sizes and flow rates, please refer to Equilibar's General Service Series and Industrial Service Series valves. Canadian Registration Number (CRN) certification is available for selected Research Series models in all regions and provinces. Please contact us for more details. Whether you require precise pressure control for liquids, gases, mixed phases, or even slurries, our application engineers can specify the appropriate back pressure regulator.
Price range
Delivery Time
P4
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
