Distribution of analysis cases! Introducing electromagnetic field analysis using convenient external field functions.
The outdoor function in the PHOTO series is effective!

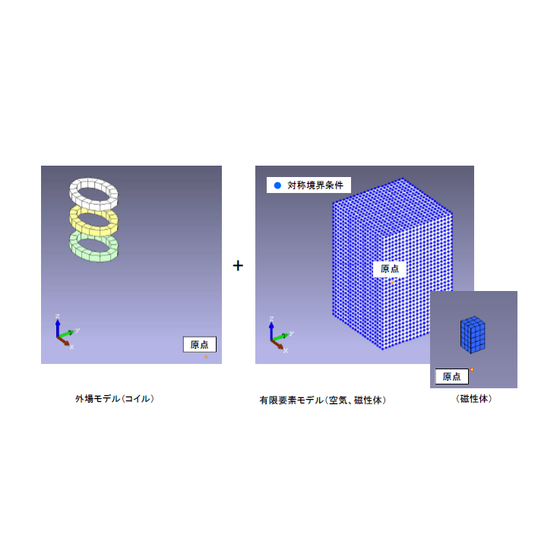

In the PHOTO series, you can set the current density for models such as coils and perform coupled analysis with finite element models (such as magnetic materials) that are influenced by it, using it as an external field model.
Inquire About This Product
basic information
- There is no need to match the mesh between the "external field model" and the "finite element model." - The "external field model" does not require air elements. - Analysis using a moving "external field model" is possible.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the catalog or feel free to contact us.
catalog（5）
Download All Catalogs
![[Case Study 6] Product Catalog on the Effects of Magnetic Sheets for RFID Cards Using External Field Functions](https://image.mono.ipros.com/public/catalog/image_generated/01/c78/223742/223742_IPROS2162170508728805064_1.jpg?w=120&h=170)
![[Case Study 7] Product Catalog for Eddy Current Testing (Non-Destructive Testing) Using External Field Combined Method](https://image.mono.ipros.com/public/catalog/image_generated/01/422/223744/223744_IPROS3581362336985433511_1.jpg?w=120&h=170)
Company information
At Photon, we are developing "electromagnetic field analysis software" that models and simulates products and components utilizing electromagnetic phenomena on a computer. In traditional design and development environments, the process has primarily revolved around trial and error through prototyping based on the experience of engineers and experiments with prototypes. However, conducting experiments using actual prototypes and analyzing the results requires significant time and cost. Moving forward, transitioning from an experimental and prototyping-based approach to an analysis-based design approach will be a crucial challenge for improving productivity, and establishing simulation technology as the core of analysis-based design techniques will be essential. In this context, Photon is developing and providing "analysis software" focusing on electromagnetic fields, as well as heat, vibration, and sound fields. By utilizing Photon's software, efficient development and design of various industrial products can be achieved. In this way, Photon aims to support users in reducing the number of prototypes, lowering development costs, and shortening development periods in their manufacturing environments, ultimately enhancing their competitiveness.
