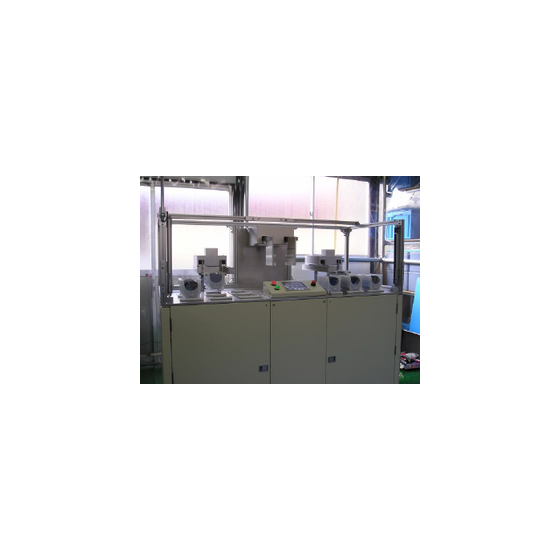

The Orifura alignment can be switched using a switch! A wafer transfer device that flips the even rows of wafers in the central part.
We would like to introduce our "Wafer Transfer Device." With two carrier handlers on the left and right, it enables high-speed transport of 1 to 6 carriers. The alignment of the orifice can be switched between upper and lower alignment using a switch. The device can invert wafers in even-numbered rows at the center, while inversion of odd-numbered rows is optional. 【Main Specifications】 ■ Target wafers: Dedicated machines for 4, 5, or 6 inches ■ Number of transfer carriers: 1 to 6 (customizable) ■ Orifice alignment: Switchable (upper alignment, lower alignment) ■ Transfer time: Within 9 minutes for 6 carriers ■ Device dimensions: 1600mm x 725mm x 1450mm (for 4-inch specification) ■ Device weight: 150kg ■ Power supply: AC100V, 15A *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
