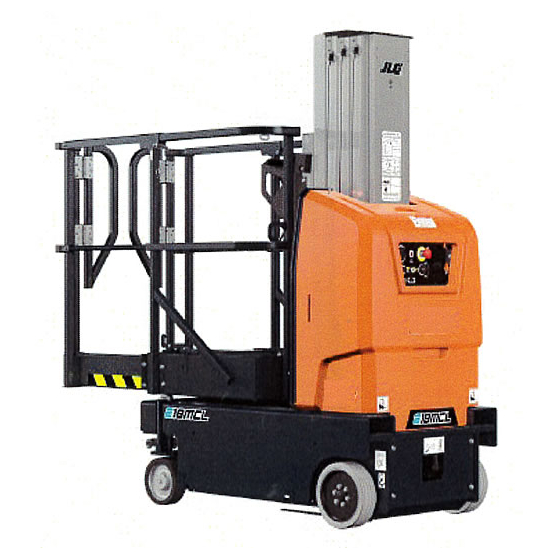

Rechargeable vertical lift mast electric aerial work platform tire type
■Standard Equipment ●Capable of running while extending (automatic slow speed during ascent) ●Clear Sky (Telematic)/with beacon ●Internally opening automatic closing door
Inquire About This Product
basic information
■Specifications Model Number: M2469EMC-5400H / M2469EMM-5400H Working Platform Maximum Working Platform Height: Indoor 5.4m / Outdoor 3.9m / 5.4m Maximum Load Capacity of Working Platform: 181 kg / 204 kg Maximum Load Capacity of Extended Working Platform: 113 kg / - Maximum Load Capacity of Picking Tray: - / 45 kg Working Platform Dimensions (Width D × Depth E): 64 × 60 cm / 64 × 60 cm Picking Tray Length F: - / 71.8 cm Extended Working Platform Length G: 59.4 cm / - Travel Travel Speed: Stowed 4km/h, Ascending 0.8km/h / Stowed 4km/h, Ascending 0.8km/h Minimum Turning Radius: Zero (Inside) / Zero (Inside) Minimum Turning Radius: 1.4 m (Outside) / 1.2 m (Outside) Climbing Ability: 16.7 degrees (30%) / 16.7 degrees (30%) Minimum Ground Clearance K: 6.4 cm / 6.4 cm Dimensions of the Body (Length H × Width G × Height C): 146 × 76 × 197 cm / 146 × 76 × 197 cm Weight of the Body: 885 kg / 885 kg
Price range
Delivery Time
Applications/Examples of results
● Easy to work in tight spaces with ultra-small turning radius M2469EMC-5400H Standard turning (spin turn) M2469EMM-5400H Ultra-standard turning (pivot turn) ● Non-marking tires that leave minimal traces on the floor ● Maintenance-free battery for easy management ● Fully proportional control for precise operation
