Achieving high magnetic fields through the use of rare earth magnets!

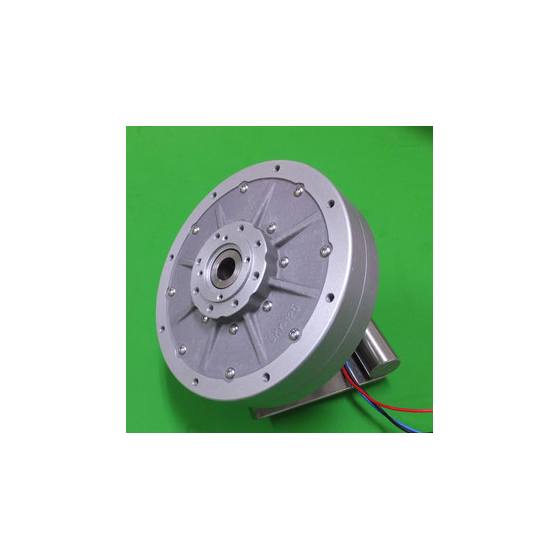

The SKY-MR series generates a high magnetic field by using rare earth magnets and adopting a multipole structure, allowing for high output voltage even at low rotation speeds (below 300 rpm), making it a highly efficient generator with high output. By employing a rotating field excitation type where the magnetic part rotates and a coreless structure that does not use an iron core, it has the advantage of having no electrical contact points, eliminating cogging torque and iron losses. As a result, it is a highly efficient and reliable generator that starts smoothly.
Inquire About This Product
basic information
Models ranging from a fixed output of 35W to 500W are available. 【Features】 ■ High-efficiency power generation system with high output ■ Uses rare earth magnets ■ Coreless structure ■ No cogging torque or iron loss occurs *For more details, please refer to the catalog or website.
Price range
Delivery Time
Applications/Examples of results
Ideal for small wind power generation and small hydropower generation. Also adopted in our company's developed bicycle-type human-powered generator, the EnerTrek series.
Line up（5）
| Model number | overview |
|---|---|
| SKY-MR125 | Rated power generation of 35W |
| SKY-MR160 | Rated output power 100W |
| SKY-MR200 | Rated power generation of 200W |
| SKY-MR250 | Rated power generation of 300W |
| SKY-MR300 | Rated power generation of 500W |
Company information
Sky Electronics is a specialized manufacturer of precision coils and prototype coils, and in order to contribute to environmental issues, we develop and sell outer rotor generators such as micro generators, small wind turbines, bicycle generators, and small generators for disaster prevention.
