AI inference, object detection, image processing, etc. Supported. Slim and high-performance compact embedded PC.
This product is the industrial embedded PC "EC2A-100xT series," developed to strongly accelerate advanced manufacturing DX such as AI inference, object detection, and image processing in manufacturing sites. It is equipped with the NVIDIA Jetson Orin module, which is optimal for edge AI processing, and delivers very high performance while maintaining a slim form factor. It is possible to select an LTE option to enable direct cloud access without wiring, even in locations without a network environment, facilitating smooth data collaboration throughout the factory. Additionally, as a countermeasure against power troubles, an uninterruptible power supply (UPS) using lithium iron phosphate batteries can be added as an option. This provides excellent robustness, allowing it to withstand "hard cut" operations while protecting data and the OS for up to five minutes in the event of sudden power outages or circuit breaker interruptions. It operates stably even in harsh factory environments and is a key product supporting the next generation of smart factories.
Inquire About This Product
basic information
■ Basic Performance CPU: Jetson Orin NX (16/8GB) / Orin Nano (8/4GB) Selectable Storage: High-speed M.2 NVMe SSD ■ Video Output External Output: 4K compatible HDMI ×1 ■ Interface/Expansion Wired LAN: 1000Base-T ×4 (Compatible with GigE cameras) USB: 3.2 Gen2 ×2 / 2.0 ×2 / Type-C ×1 Serial/DIO: RS-232C/422/485 switchable ×1 / Isolated type Inputs: 6 points / Outputs: 4 points Expansion Slot: PCIe x4 ×1 / PCIe x1 ×1 (additional available) ■ Power/Structure Power Supply Voltage: DC 12-24V (Wide input compatible) Power Consumption: Maximum 64W Enclosure: Box-type slim structure (Desktop/wall mount compatible) ■ Dimensions/Environment External Dimensions: W271.8 × H162 × D40.9mm (When expansion slot is installed: D90.5mm) Weight: Approximately 2.0kg
Price range
Delivery Time
Applications/Examples of results
This product is ideal for advanced industrial sites that require advanced artificial intelligence (AI) image analysis and real-time multi-camera monitoring, despite having limited installation space. Specific applications include installing it on the side of production lines or inside automation equipment, where the edge AI image inspection controller processes footage from connected high-resolution cameras to instantly detect fine scratches and foreign objects on products. It comes standard with four gigabit-capable wired LAN ports and can be expanded with high-speed camera link cards via PCIe expansion slots, allowing for the construction of complex image recognition systems that integrate multiple high-performance industrial cameras in a space-saving manner. Additionally, it is suitable for manufacturing robots' trajectory control, leveraging its powerful computing performance and general-purpose I/O ports, as well as for high-performance IoT gateway terminals that aggregate data from peripheral devices and securely transfer it to the cloud. The ability to equip it with an uninterruptible power supply (UPS) to protect the system from unexpected power outages ensures high operational rates even in 24-hour operational environments.

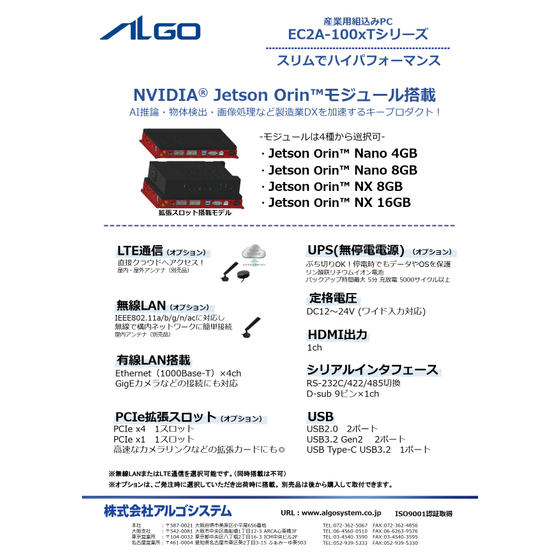

catalog（1）
Download All Catalogs
Company information
Founded in 1981 as a system house, ALGO is now challenging further advanced fields with its business concept of "Communication & Control" through innovative technology. In addition to its traditional business areas of "Control Equipment," "Logistics Equipment," and "Computer Telephony," ALGO believes that the relationships between people and people, as well as between people and machines, should be broader, more enjoyable, and more stress-free. As a new business, ALGO is working in the fields of ● Information and Control Terminals ● RFID ● Network Equipment, creating various communication and control scenes while proposing the optimal and best environment for its customers. Each employee at ALGO is dedicated to shaping the future of communication with new ideas and fresh sensibilities.
