Promoting DX in the manufacturing industry at low cost.
This product is a palm-sized compact industrial embedded computer that allows you to choose between Windows 10 IoT Enterprise or Linux Algonox 10.0 as the operating system. It features an energy-efficient Intel Atom processor and achieves a completely fanless structure through natural air cooling. Despite its extremely compact dimensions of 15 x 13 centimeters, it possesses excellent processing capabilities and can be flexibly installed in limited spaces on-site. Additionally, it can be equipped with practical communication options at the time of shipment, such as an uninterruptible power supply (UPS) with a built-in lithium iron phosphate battery that fully protects the system and data from sudden power outages, as well as LTE communication for direct cloud access or wireless LAN. It is a low-cost edge terminal that combines space-saving design with high reliability, equipped with robust RAS features such as a watchdog timer and temperature monitoring.
Inquire About This Product
basic information
■ Basic Specifications ・Processor: Intel Atom x6414RE (4 cores, 1.5 gigahertz) ・Main Memory: Available in options up to 32 gigabytes ・Storage: High-speed M.2 SATA SSD ■ Video Output ・Video Output: 1 channel HDMI port supporting 4K resolution ■ External Ports ・Wired LAN Port: 2 channels supporting 1000 megabits (1000Base-T) ・USB Ports: 2 x USB 3.2 Gen1, 1 x USB 2.0 ・General I/O: 6 input points, 4 output points ・Serial Ports: 2 channels equipped with RS-232C ■ Power and Structure ・Power Specifications: Rated voltage 24 volts DC ・Power Consumption: 27 watts or less ・Chassis: Compact box-type structure (suitable for desktop or wall mounting) ■ Dimensions, Weight, and Environmental Conditions ・Dimensions: Width 150 millimeters × Height 130 millimeters × Depth 54 millimeters ・Weight: Approximately 1.0 kilogram ・Operating Ambient Temperature: 0 to 50 degrees ・Ambient Humidity: 10 to 90% (without condensation)
Price range
Delivery Time
Applications/Examples of results
This product is ideal for edge computing terminals in manufacturing environments where extremely limited installation space, stable operating conditions, and cost performance are simultaneously required. Specifically, it can serve as an embedded control and computing controller that smartly fits into tight spaces within various manufacturing and inspection equipment, as well as small control panels, thanks to its ultra-compact housing measuring 15×13 centimeters. Additionally, with two channels of gigabit wired LAN ports, optional wireless LAN, direct cloud connectivity via LTE communication, and two channels of serial ports and general-purpose I/O, it is perfect for compact IoT gateway terminals that aggregate data from various sensors and measuring instruments on-site and send it to higher-level systems. Its completely fanless, dust-proof design, along with the option to include a battery (UPS) for power outage protection to safeguard the system from unexpected power interruptions, makes it suitable for dusty processing environments and for use as a server for monitoring production lines that operate continuously for 24 hours.

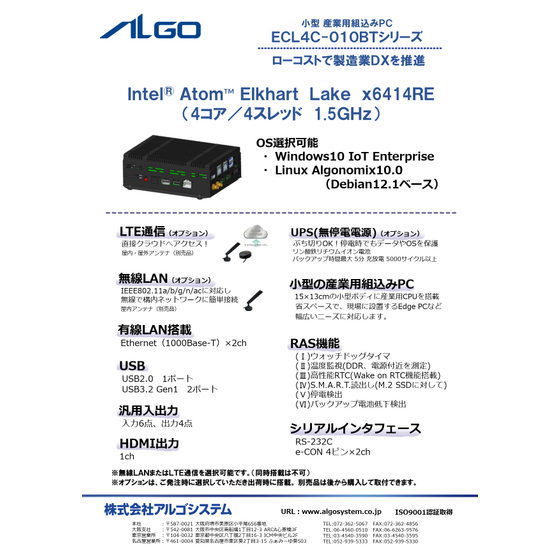

catalog（1）
Download All Catalogs
Company information
Founded in 1981 as a system house, ALGO is now challenging further advanced fields with its business concept of "Communication & Control" through innovative technology. In addition to its traditional business areas of "Control Equipment," "Logistics Equipment," and "Computer Telephony," ALGO believes that the relationships between people and people, as well as between people and machines, should be broader, more enjoyable, and more stress-free. As a new business, ALGO is working in the fields of ● Information and Control Terminals ● RFID ● Network Equipment, creating various communication and control scenes while proposing the optimal and best environment for its customers. Each employee at ALGO is dedicated to shaping the future of communication with new ideas and fresh sensibilities.
