Since there is an internal thread at the tip, various fittings can be attached.

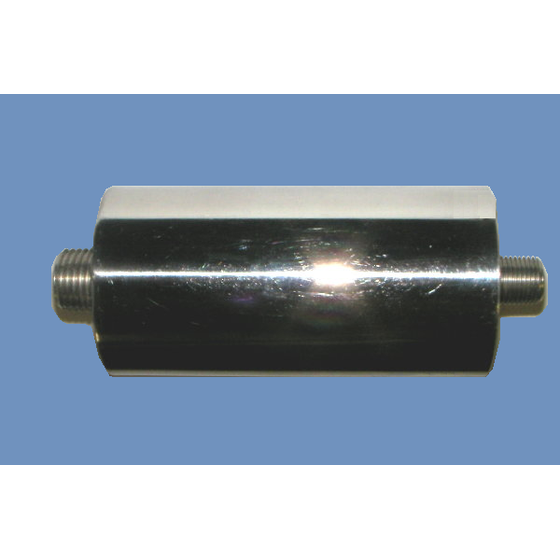

It is a simple structure with threads cut at both ends of the stainless steel pipe. ABH-38X6 is a short, thick-bodied model of ABH-34N. A heating element of 2.5kW to 5kW has been incorporated into a φ38 metal tube case. Please use it when a gas flow rate of 200 to 400 liters per minute is required. Accurate temperature control can be achieved using a thermocouple at the outlet. Since the temperature of the heating element can be monitored, safety measures against overheating can be implemented. With internal threads cut at the tip, various fittings can be attached. There are metal tube cases of various lengths available. For safety and health measures, the temperature of the heating element can be monitored to prevent overheating. Since transparent gas is used for heating, it is ideal for photography and video recording.
Inquire About This Product
basic information
A heating element of 2.5kW to 5kW has been incorporated into a φ38 metal tube case. For more details, please check the site below: https://www.heat-tech.biz/products-nh/nh-ss/nph-gj-gz/855.html
Price range
Delivery Time
Applications/Examples of results
Cap seal Film shrink Re-dissolution of hot melt Torch for resin welding Heat sealing of paper packs Heat staking Heating and cutting of resin sheet materials Drying of coaters Drying of printed materials Drying of electric welding tubes Soldering of printed circuit boards Self-fusing of winding coils Deburring of resin molded products Heating of samples for electron microscopy Ignition source for burners Processing of grilled tofu End processing of fibers Production of heated nitrogen gas Preheating of resin sheets Preheating of printed circuit boards Material surface analysis Operational testing of thermal switches Partial heating of culture media Production of heated sterilizing air Thermal distortion testing of liquid crystals Heating of ammonia gas Seal peeling Heat shrink of lithium batteries Dehumidifying drying of resin pellets Drying of silicon wafers Heating disinfection of liquids Uniform heating of culture media Water removal and drying of metal films Water removal of glass bottles Replacement of gas in all-electric laboratories Drying of printed wire marks Aging of electronic components Adhesion of film and paper Drying of processing holes Internal drying of pipe products Prevention of double feeding and preheating of blank materials Water removal and drying of surface-treated steel plates Water removal and drying of engine blocks Rapid heating within processing chambers
Detailed information
-
Water drainage and drying of metal films Issues Drying with high-temperature gas made it difficult to manage the surface tension of the metal films. ⇒ Improvement points Used a wide nozzle with a hot air heater for drying. Maintained surface tension with precise temperature control.
-
Heating of movable parts Issues There was no method to heat the movable parts to the appropriate temperature, which was problematic. ⇒ Improvement points Heated with a hot air heater. Since it can be heated without contact, mobility was maintained.
-
Drying of metal parts after cleaning Issues There was no method to dry metal parts quickly, which was problematic. ⇒ Improvement points Used a large-capacity hot air heater with a high-temperature blower. Work can be done in a short time, so the number of cleanings has increased. Residual water was evaporated with high heat, so rust no longer appeared.
