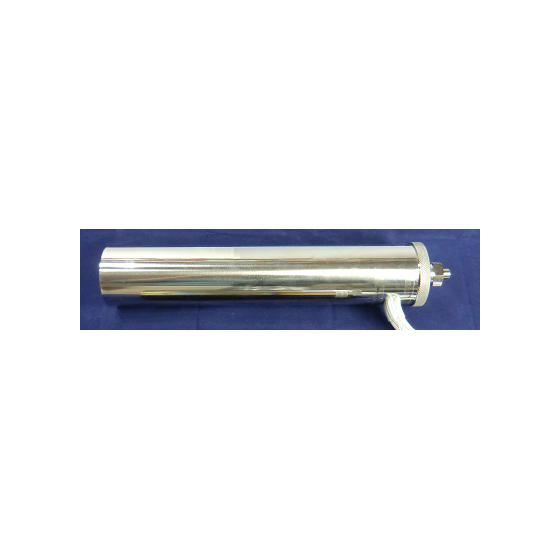

A heating element of 18kW to 30kW has been incorporated into a φ101.6 metal tube case.
The ABH-102X6 is a higher model than the ABH-61X6. It incorporates a heating element ranging from 18kW to 30kW in a metal tube case with a diameter of φ101.6. By using a thermocouple at the outlet, precise temperature control can be achieved. Since the temperature of the heating element can be monitored, safety measures against overheating can be implemented. The end is threaded internally, allowing for various fittings to be attached. There are metal tube cases available in various lengths. For safety and health measures, the temperature of the heating element can be monitored to prevent overheating. Since it uses transparent gas for heating, it is ideal for photography and video recording.
Inquire About This Product
basic information
A heating element of 18kW to 30kW has been incorporated into a φ101.6 metal tube case. Please check the details on the website below: https://www.heat-tech.biz/products-nh/nh-ss/nph-gj-gz/858.html
Price range
Delivery Time
Applications/Examples of results
Cap seal Film shrink Re-dissolution of hot melt Torch for resin welding Heat sealing of paper packs Heat staking Heating and cutting of resin sheet materials Drying of coaters Drying of printed materials Drying of electric welding tubes Soldering of printed circuit boards Self-fusing of winding coils Deburring of resin molded products Heating of samples for electron microscopy Ignition source for burners Processing of grilled tofu End processing of fibers Production of heated nitrogen gas Preheating of resin sheets Preheating of printed circuit boards Surface analysis of materials Operational testing of thermoswitches Partial heating of culture media Production of heated sterilizing air Thermal distortion testing of liquid crystals Heating of ammonia gas Seal peeling Heat shrink of lithium batteries Dehumidifying drying of resin pellets Drying of silicon wafers Heating and disinfecting of liquids Uniform heating of culture media Water removal and drying of metal films Water removal of glass bottles Replacement of gas in all-electric laboratories Drying of printed wire mark printing Aging of electronic components Adhesion of film and paper Drying of processing holes Internal drying of pipe products Prevention of double feeding and preheating of blank materials Water removal and drying of surface-treated steel plates Water removal and drying of engine blocks Rapid heating inside processing chambers
Detailed information
-
Drying of metal parts after cleaning Issues There was no method to dry metal parts quickly, which was problematic. ⇒ Improvement Points Used a large-capacity hot air heater with a high-temperature blower. Work can be done in a short time, so the number of cleanings has increased. Residual water was evaporated with high heat, so rust no longer appeared.
-
Nitrogen Gas Concentration Device Issues There was no good method for concentration without oxygen, which was problematic. ⇒ Improvement Points Concentration was performed by directly blowing nitrogen gas onto the sample. Low-volatility solvents like DMSO and water could also be quickly removed by using heated nitrogen gas under reduced pressure. Since stainless steel and super engineering plastics were used, highly corrosive solvents could also be utilized.
-
Hot Air Roasting of Cocoa Beans Issues Until now, it has not been possible to roast evenly at the optimal temperature. ⇒ Improvement Points Roasting was done with a hot air heater. Precise temperature control from a light roast at 120°C to a dark roast at 160°C can now be easily achieved in 1°C increments. Moreover, the beans are automatically stirred by hot air, allowing for uniform heating from all sides, which has reduced roasting variability and increased product value. With no burnt or raw parts, the variability when grinding for hot chocolate has decreased, allowing for the enjoyment of fresh cocoa flavors. Additionally, there is a controller that can automatically control roasting time and hot air flow, making it easy to prototype.
